Monitor GDS Data
1.

Connect GDS to Data Link Connector (DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

Monitor "BRAKE SWITCH" and "REDUNDANT BRAKE SWITCH" parameter on the GDS.

Specification : When brake pedal is released : "BRAKE SWITCH" and "REDUNDANT BRAKE SWITCH" : OFF

When brake pedal is depressed : "BRAKE SWITCH" and "REDUNDANT BRAKE SWITCH" : ON

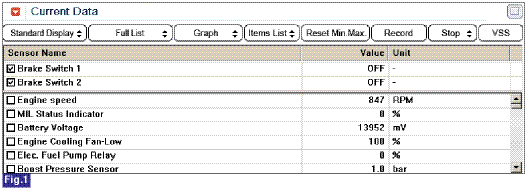

Fig.1) Data when brake switch(brake pedal) is deactivated(released) : "BRAKE SWITCH" and "REDUNDANT BRAKE SWITCH" : OFF

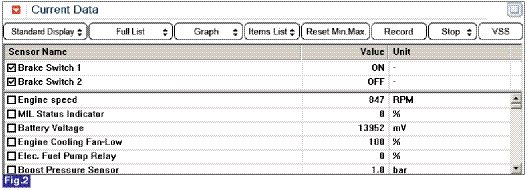

Fig.2) Data when brake switch(brake pedal) is activated(depressed) : "BRAKE SWITCH" and "REDUNDANT BRAKE SWITCH" : ON
