4.
IMaintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.
Specification : less than 17 [V]

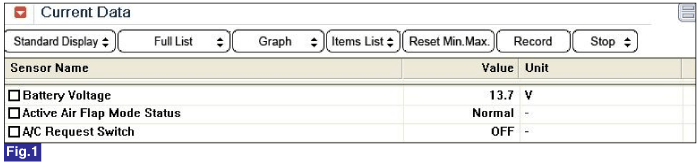

Fig.1) Engine ON
Connect GDS to Data Link Connector(DLC).
Start engine and turn the headight and the heatwire on.
Monitor the "BATTERY VOLTAGE" parameter on the GDS.
IMaintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.
Specification : less than 17 [V]
Fig.1) Engine ON
Is the displayed current data normal?
 | ▶ Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and A. A. F Actuator memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Inspection and Repair" procedure. |
