4.
Keep the 2500 Engine rpm for 2 minutes and then confirm the output value.
Specification : Approx. 10.5 ≤ Vbatt ≤ 16

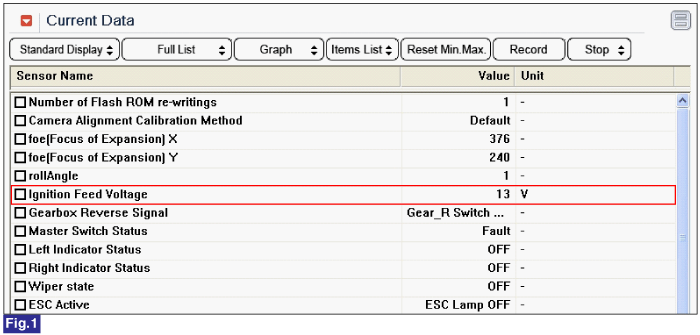

FIg.1) Engine "ON"
Connect GDS to Data Link Connector(DLC).
Turn "ON" Engine and headlamp and defogger S/W.
Monitor the "Supply voltage" parameters on the GDS.
Keep the 2500 Engine rpm for 2 minutes and then confirm the output value.
Specification : Approx. 10.5 ≤ Vbatt ≤ 16
FIg.1) Engine "ON"
Is parameter displayed within specifications?
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or AFLS ECU’s connector or was repaired and AFLS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Inspection/Repair" procedure. |
