4.
While idling, keep the engine speed at 2,500 rpm for 2 minutes, and check the sensor output.
Specification : Above 9V

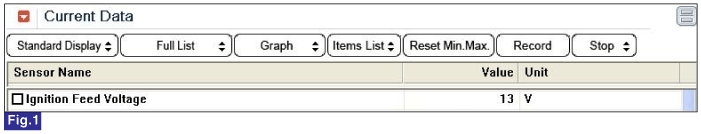

Fig.1) Engine "ON"
Connect GDS to Data Link Connector(DLC).
Engine "ON", headlights and rear window defogger "ON".
Monitor the "Ignition Feed Voltage" parameters on the GDS.
While idling, keep the engine speed at 2,500 rpm for 2 minutes, and check the sensor output.
Specification : Above 9V
Fig.1) Engine "ON"
Is the "Ignition Feed Voltage" parameter displayed correctly ?
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or LKAS’s connector or was repaired and LKAS memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. ▶ Repair or replace as necessary and go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Inspection & Repair" procedure. |
