Component Inspection
■ Actuator Test Check
1.

Connect GDS to Data Link Connector(DLC)

2.

IG key "ON"

3.

Perform Actuator Test with GDS.

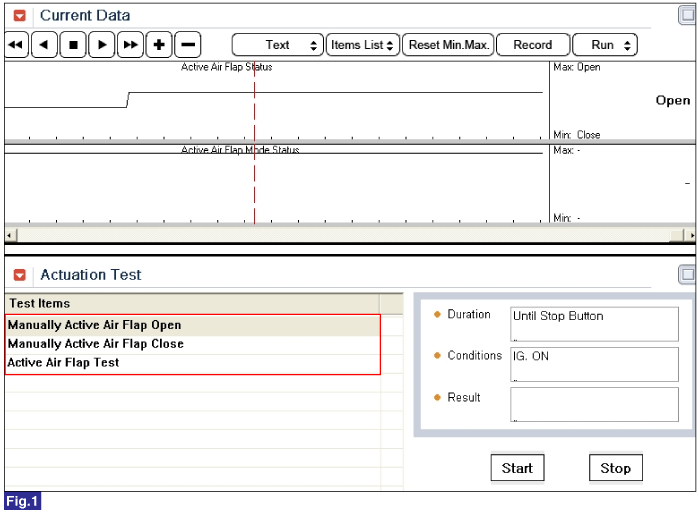

Fig.1) Actuation test

4.

Is the operation in normal ?

▶ Go to next procedure.

▶ Substitute with a known-good A.A.F and check for proper operation. If the problem is corrected, replace A.A.F and then go to "Verification of Vehicle Repair" procedure.
