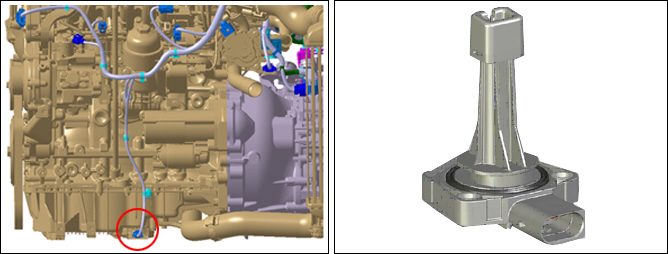

Oil level sensor is installed inside Engine oil pan.Oil level sensor measures amount of Engine oil uses ultra-sonic and also measures Engine oil's temperature.These informations were transmitted to ECM through the LIN communication.
ECM sets this code when raw value is Higher than available range.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Signal Monitoring |
•
Faulty Oil Level Sensor
•
Faulty Circuit |
Enable Conditions |
•
IG "ON"
•
No error related to LIN communication | |
Threshold value |
•
Raw value error | |
Diagnosis Time |
•
1sec | |
MIL On Condition |
•
DTC only(Idle stop forbidden) |
