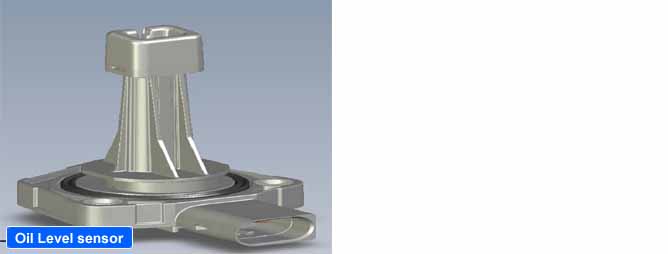

Oil level sensor is installed inside Engine oil pan.Oil level sensor measures amount of Engine oil uses ultra-sonic and also measures Engine oil's temperature.These informations were transmitted to ECM through the LIN communication.
ECM sets this code when raw value is lower than available range.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal Monitoring | 1. Faulty Oil Level Sensor 2. Faulty Circuit |
Enable Conditions |
•
IG on | |
Threshold Value |
•
Raw value error | |
Diagnostic Time |
•
1sec | |
MIL ON Condition |
•
DTC only (oil lamp ON) |
