3.

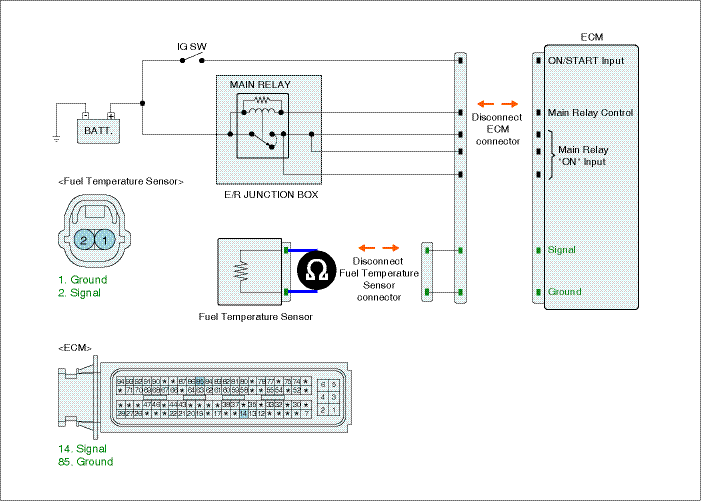

Measure resistance of signal terminal and ground terminal of FTS connector. (component side)
Specification : Refer to Specification of General Information.
IG KEY "OFF", ENGINE "OFF".
Disconnect FTS connector.
Measure resistance of signal terminal and ground terminal of FTS connector. (component side)
Specification : Refer to Specification of General Information.
Is the measured resistance at certain temperature within the specified resisance range at the temperature?
 | ▶ Go to "Verification of Vehicle Rapair". |
 | ▶ Replace FTS and go to "Verification of Vehicle Rapair". |
