3.
Is the problem found?
 | ▶ Repair the trouble causing part and go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Control Circuit Inspection" procedure. |
Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various problems and damage of component.
Perform checking procedure as follows.
2.1) Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.
2.2) Check connecting condition of ECM and component connector : Check terminal separation, damage of locking device and connecting condition between terminal and wiring.
Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for checking connecting condition.(After checking, reconnect the pin at correct position.)
Is the problem found?
| ▶ Repair the trouble causing part and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Control Circuit Inspection" procedure. |

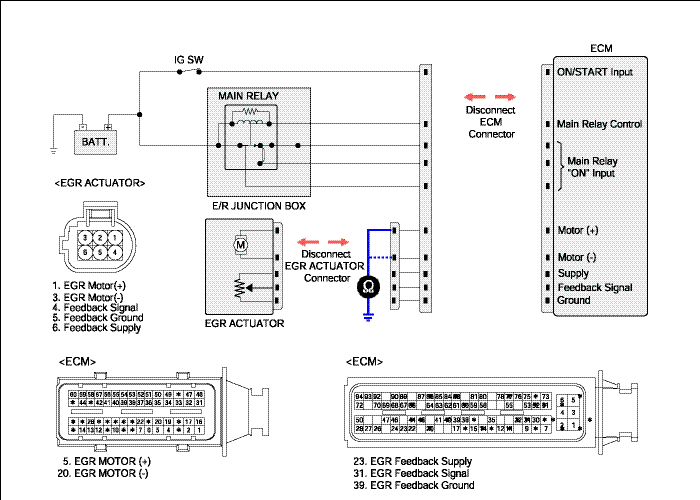

IG key OFF.
Disconnect 'EGR ACTUATOR' connector and ECM connector.
Check resistance between motor (+) terminal of 'EGR ACTUATOR' harness connector and chassis ground.
Check resistance between motor (-) terminal of 'EGR ACTUATOR' harness connector and chassis ground.
Specification : Infinite
Is the measured value within specification?
| ▶ Go to "Component Inspection". |
| ▶ Repair short to ground between motor terminal of EGR actuator harness connector and ECM harness. |
