3.

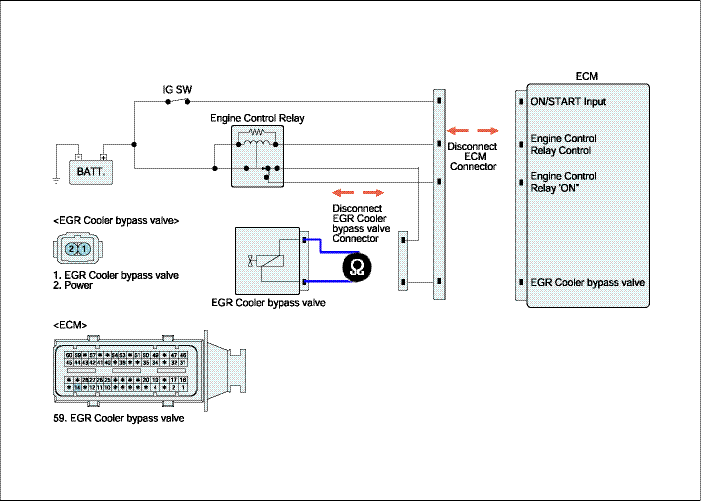

Check resistance between signal and ground terminal of EGR cooler bypass valve.
Specification : 30 Ω (20°C)
IG key OFF.
Disconnect EGR cooler bypass valve connector.
Check resistance between signal and ground terminal of EGR cooler bypass valve.
Specification : 30 Ω (20°C)
Is the measured value within specification?
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Repair EGR cooler bypass valve , and go to "Verification of Vehicle Repair" procedure. |
