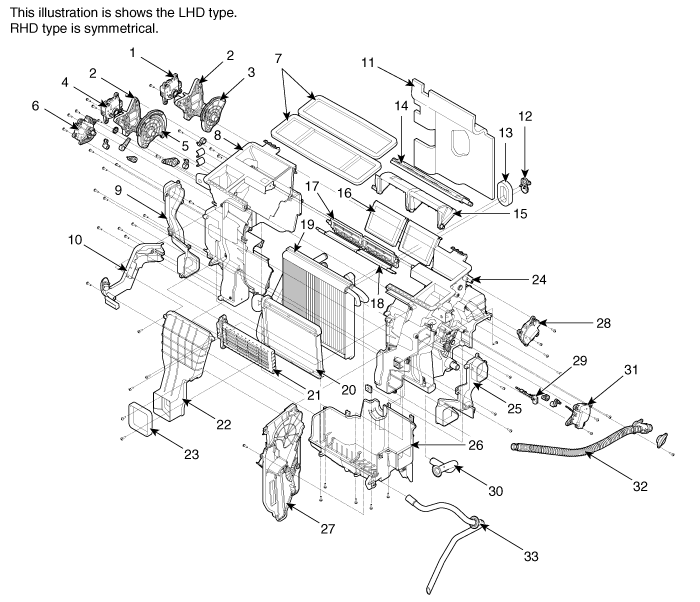

1. Mode Control Actuator (DATC)

2. Mode Control Actuator Bracket

3. Mode Control Main Lever (DATC)

4. Mode Control Actuator (MANUAL)

5. Mode Control Main Lever (MANUAL)

6.Temperature Control Actuator (Driver)

7. Vent Seal

8. Heat Case (LH)

9. Shower Duct Cover (LH)

10. Heater Pipe Cover

11. NVH Pad

12. Evaporator Flange Cap

13. Flange Seal

14. Defog Door

15. Vent Door

16. Mix Door

17. Foot Door

18. Mix Sub Door

19. Evaporator Core

20. Heater Core

21. PTC Heater Core

22. Rear Vent Cover

23. Rear Console Vent Seal

24. Heater Case (RH)

25. Shower Duct Cover (RH)

26. Heater Lower Case

27. Blind Case

28. Auto defogging Actuator

29. Evaporator Temperature Sensor

30. Cool Box Hose

31. Temperature Control Actuator (Passenger)

32. Aspirator Hose

33. Drain Hose
