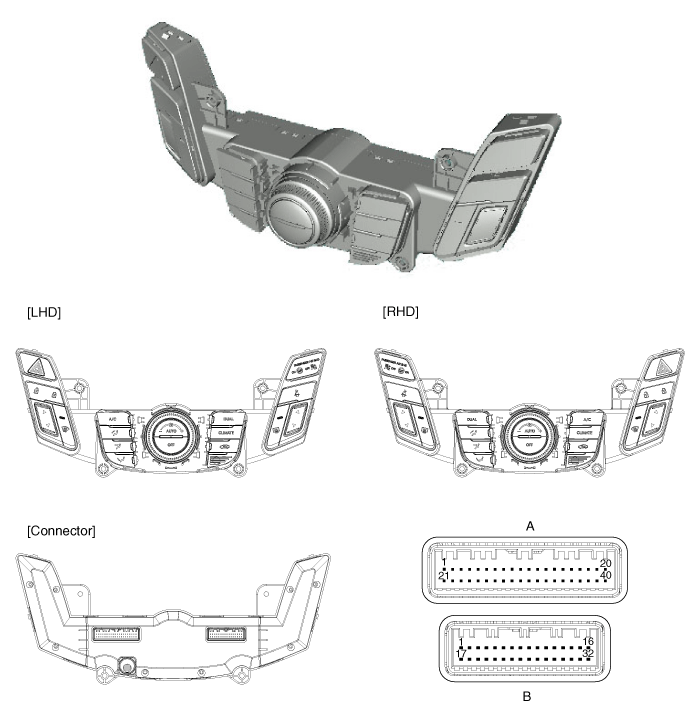

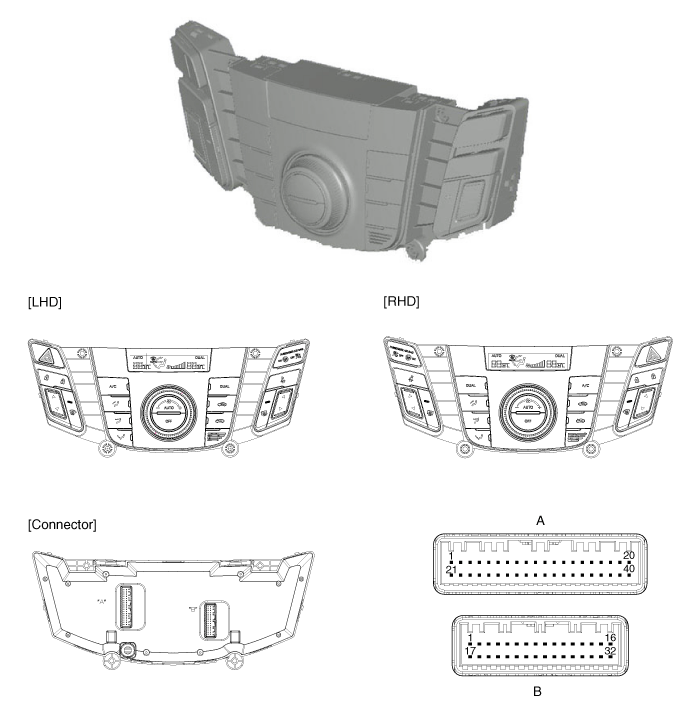

Connector | Pin No | Function | Connector | Pin No | Function |
A | 1 | Battery | B | 1 | Vref (+5V) |
2 | Tail Lamp (ILL+) | 2 | - | ||
3 | IG2 | 3 | Passenger Tempurature Actuator (COOL) | ||
4 | Mode Actuator (VENT) | 4 | Passenger Tempurature Actuator (WARM) | ||
5 | Mode Actuator (DEF) | 5 | Passenger Tempurature Actuator (F/B) | ||
6 | Driver Tempurature Actuator (COOL) | 6 | - | ||
7 | Driver Tempurature Actuator (WARM) | 7 | HI-SCAN (K-LINE) | ||
8 | Intake Actuator (FRESH) | 8 | - | ||
9 | Intake Actuator (REC) | 9 | Multimedia CAN (Low) | ||
10 | Mode Actuator (F/B) | 10 | Multimedia CAN (High) | ||
11 | Driver Tempurature Actuator (F/B) | 11 | - | ||
12 | Intake Actuator (F/B) | 12 | - | ||
13 | Detent Signal | 13 | PAB IG1 | ||
14 | Hazard Signal Output | 14 | PAB CUT OFF Signal | ||
15 | Hazard Signal Input | 15 | PAB ON Signal | ||
16 | Blower Motor (+) | 16 | SBR Signal | ||
17 | Power Mosfet (Drain) | 17 | Defog Temperature | ||
18 | Power Mosfet (Gate) | 18 | Defog SCK | ||
19 | - | 19 | Defog Data | ||
20 | Rheostat (ILL-) | 20 | - |
Connector | Pin NO | Function | Connector | Pin NO | Function |
A | 21 | IG1 (CAN SBR) | B | 21 | Degog F/B |
22 | CAN (High) | 22 | Defog Actuator (OPEN) | ||
23 | CAN (Low) | 23 | Defog Actuator (CLOSE) | ||
24 | Rear Defog S/W (Low) | 24 | - | ||
25 | HTD (Rear Defog Indicator) | 25 | Door Unlock Signal Output | ||
26 | Driver Photo Sensor (-) | 26 | Door Lock Signal Input | ||
27 | Passenger Photo Sensor (-) | 27 | Door Lock Signal Output | ||
28 | Evaporator Sensor | 28 | - | ||
29 | Ambient Sensor | 29 | - | ||
30 | Diagnosis (Cluster Ionizer) | 30 | - | ||
31 | Clean Signal | 31 | Sensor GND | ||
32 | Ion Signal | 32 | GND | ||
33 | PTC ON Signal (Low) |
|
| ||
34 | PTC Relay (2) |
|
| ||
35 | PTC Relay (3) |
|
| ||
36 | - |
|
| ||
37 | ECV IN |
|
| ||
38 | ECV OUT |
|
| ||
39 | - |
|
| ||
40 | GND |
|
|
