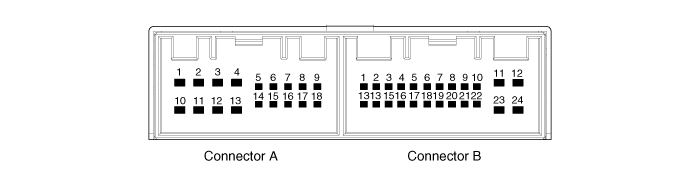

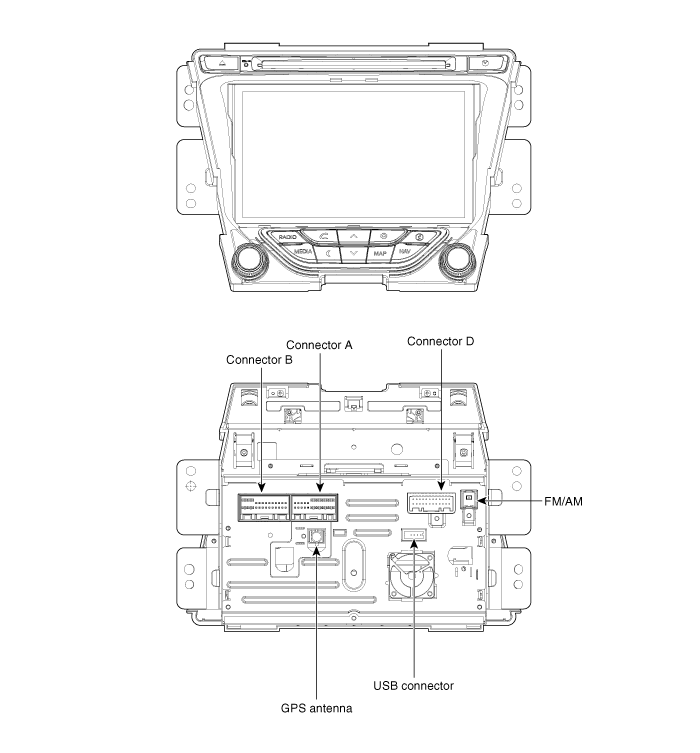

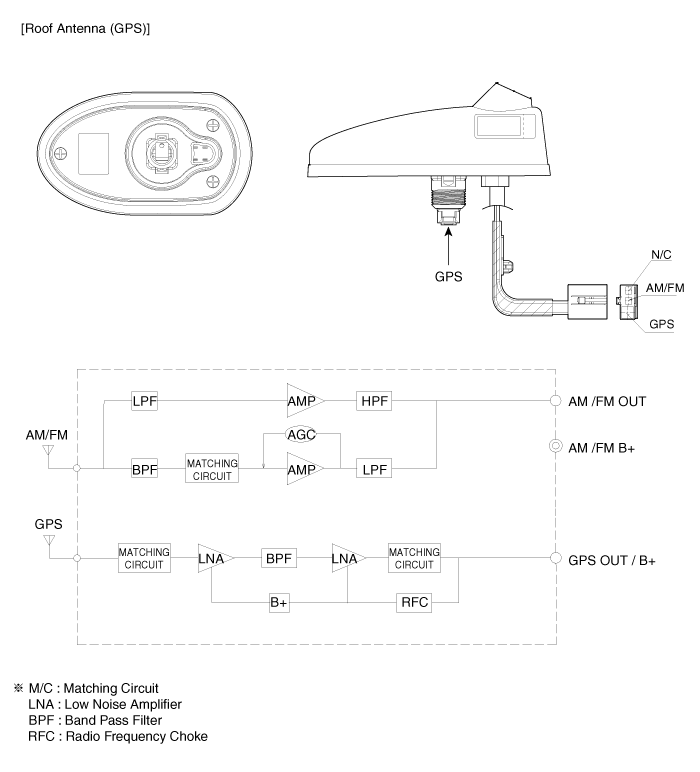

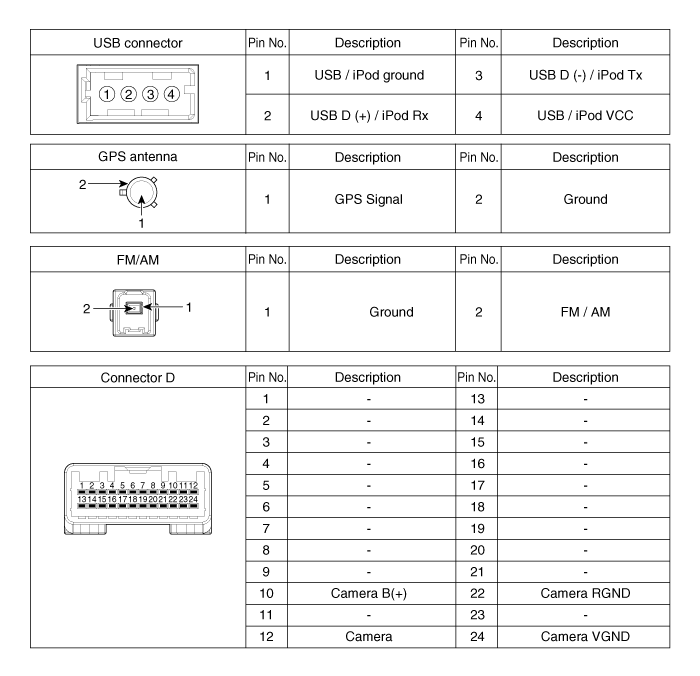

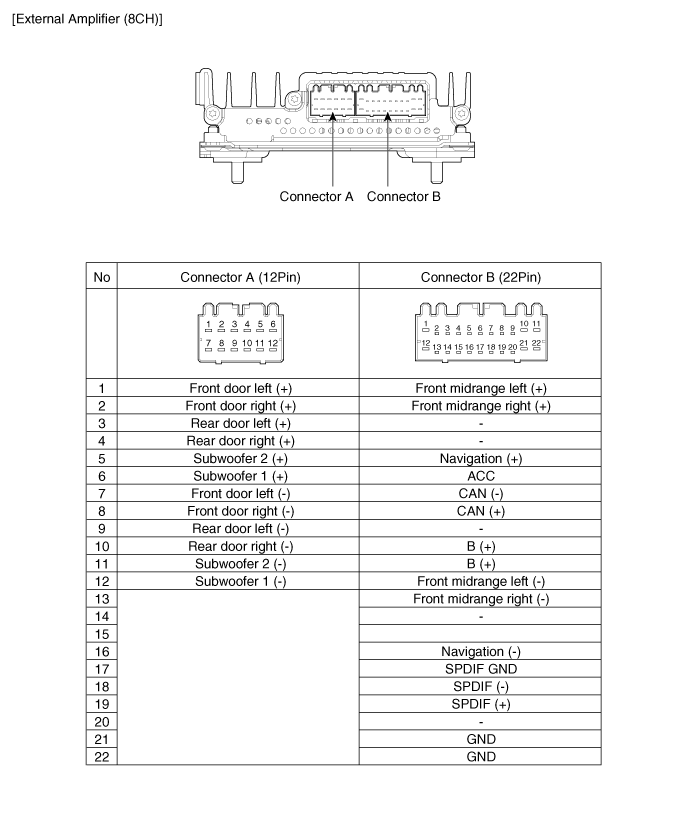

Pin No. | Connector A | Connector B |
1 | - | - |
2 | - | M_CAN High |
3 | - | Door unlock |
4 | - | - |
5 | SPDIF ground | Switch remote |
6 | SPDIF (+) | Illumination (-) |
7 | R Position | Illumination (+) |
8 | NAVI voice (-) | AUX input (RH) |
9 | NAVI voice (+) | AUX Ground |
10 | - | AUX input (LH) |
11 | - | ACC (+) |
12 | - | Battery (+) |
13 | - | - |
14 | - | M_CAN LOW |
15 | SPDIF (-) | AV Tail |
16 | AUX Video GND | - |
17 | AUX Video | Switch remote GND |
18 | Speed | Remote antenna |
19 | - | |
20 | AUX DETECT | |
21 | MIC+ (Bluetooth) | |
22 | MIC- (Bluetooth) | |
23 | Ground | |
24 | Ground |
