Front Wiper Mist Control Function

Front Washer Control Function

Front Wiper Intermittent Control Function : Control the front wiper interval time.

Front Wiper Control Function

Rear Wiper Continuous Control Function

Rear Wiper Intermittent Control Function

Rear Washer Control Function : Control the rear wiper and washer.

Head Lamp Washer By Front Wiper Washer Control Function : Head lamp washer will operate when the front wiper switch ON with Head lamp ON state.

Parking Brake State Function

SBW SBSW Function : Seat belt warning (General/Middle East)

SBR EC DRV Function : Driver seat belt reminder (Europe)

SBR EC AST Function : Assist seat belt reminder (Europe)

SBR EC Buzzer Output Control Function : : Seat belt reminder buzzer output.

Driver Seatbelt Indicator Output Control Function

Assistant Seatbelt Indicator Output Control Function

Key Reminder Warning(Key Operated Warning) : Key reminder warning sound turn ON when the driver door open with key in state.

Internal Buzzer Communication Control Function : BCM internal buzzer output.

Alarm Horn Control Function

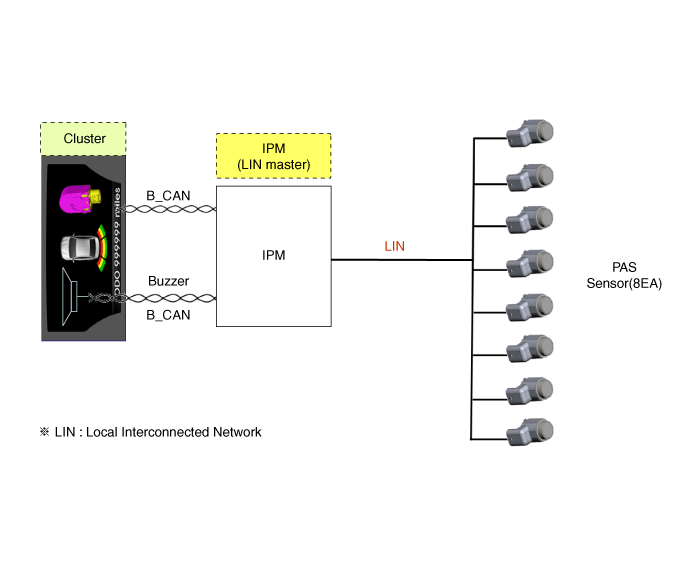

Front Center Sensor Error Handling Control Function : Warning for faulty

Front Side Sensor Error Handling Control Function : Warning for faulty

PAS Mode Indicator Control Function : Warning for faulty

Rear Center Sensor Error Handling Control Function : Warning for faulty

Rear Side Sensor Error Handling Control Function : Warning for faulty

Forward PAS Initialization Function

Reverse PAS Initialization Function

PAS Front Indicator Control Function

PAS Rear Indicator Control Function

PAS Warning Sound Control Function

Tailgate Release Control Function

RF Transmitter Function

RF Communication Function

RF Receiver Function

RKE Synchronization and Resynchronization Function

RKE Key Teaching Function

RKE Command Tailgate Function

Power Window Maintained Mode Control Function

Power Windows Enable Control Function : Power window enable signal output.

Panic Alarm Control Function

Room Lamp Control Function : Room lamp interlocked with door control.

Foot Lamp Control Function

Key Hole Illumination Control Function

Flasher Output Control : Turn signal output control (Flashing with RKE operation, B/Alarm and Panic)

Tail Lamp By Switch Control Function

Tail Lamp By Auto Light Control Function

Tail Lamp Autocut Control Function

Tail Lamp Output Control Function

Head Lamp Low By Switch Control Function

Head Lamp Low By Auto Light Control Function

Head Lamp Escort Control Function : After user generates head lamp low switch on and IGN off & START Off.

And after open and close driver side door, user will have consequently lighting of head lamp low during only 30sec.

Head Lamp Remote Welcome Control Function

Head Lamp Low Output Control Function

Head Lamp High Control By Switch Function

Passing Switch Function

Head Lamp High Output Control Function

Head Lamp Escort Option Control Function

EC DRL Function

Front Fog Lamp Control Function

Rear Fog Lamp Control Function

AV Tail By Auto Light Control Function

Auto Light Sensor Monitoring Control Function

Puddle Lamp by Unlock Control Function

Puddle Lamp By SMK Control Function

Main Puddle Lamp Output Control Function

Static Bending Lamp LH/RH Control Function : Static bending lamp turn ON according to the steering angle sensor value.

Central Door Lock Unlock Control Function

Central Locking Unlocking By Switch Control Function

Locking Unlocking Control By RKE Function

Locking Unlocking Control By SMK Function

Central Locking Unlocking By Driver Mechanical

Key Control Function

Unlocking By Crash Control Function

Auto Door Lock By Shift-Lever

Auto Door Lock By Vehicle Speed

Auto Door Unlock By Shift-Lever

Auto Door Unlock By Driver Safety Knob State

Auto Door Unlock By Key Off

Side Airbag Signal Function

Key Reminder Unlock in Driver Side

Key Reminder Unlock in Assistant Side

Key Reminder Unlock By SMK Key Reminder Unlock Function

Dead Lock Unlock Control Function

Central Unlocking By EC Unlock Control Function

Auto Door Lock Option Control Function

Auto Door Unlock Option Control Function

Tailgate Type Burglar Alarm Control Function

Lock Confirmation Function : Output the B/Alarm after checking the Lock signal output for 5 seconds.

Security Indicator Control Function

Horn Answer Back Control Function

Auto Relock Function : Output the Relock signal if any door are not opened for 30 sec after RKE unlock.

Auto door Lock/Unlock, Shift Lever Lock/Unlock, Head Lamp escort, Panic, Horn Answer Back
