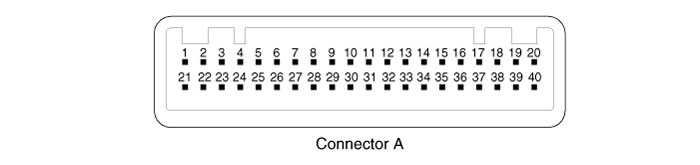

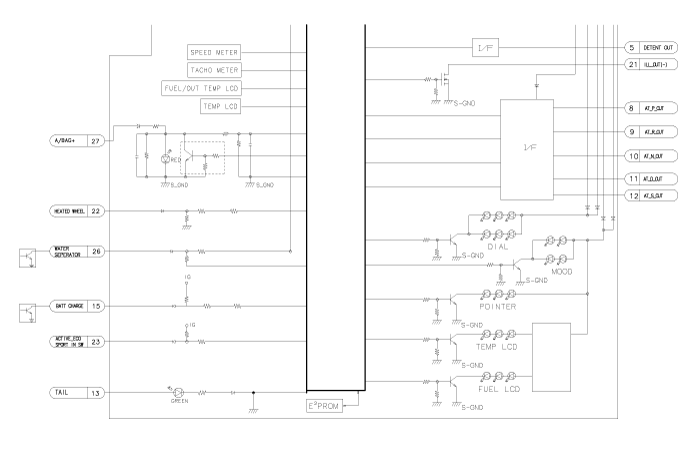

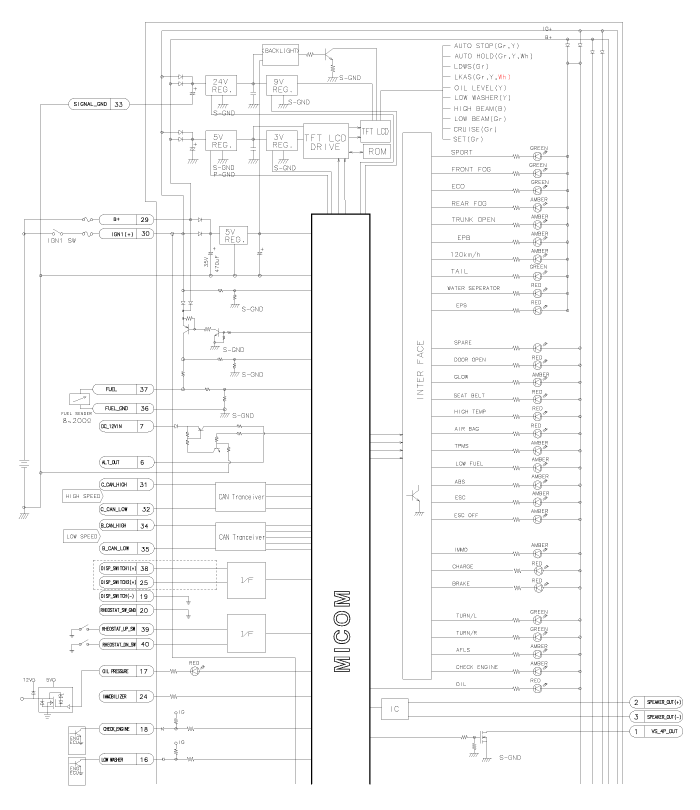

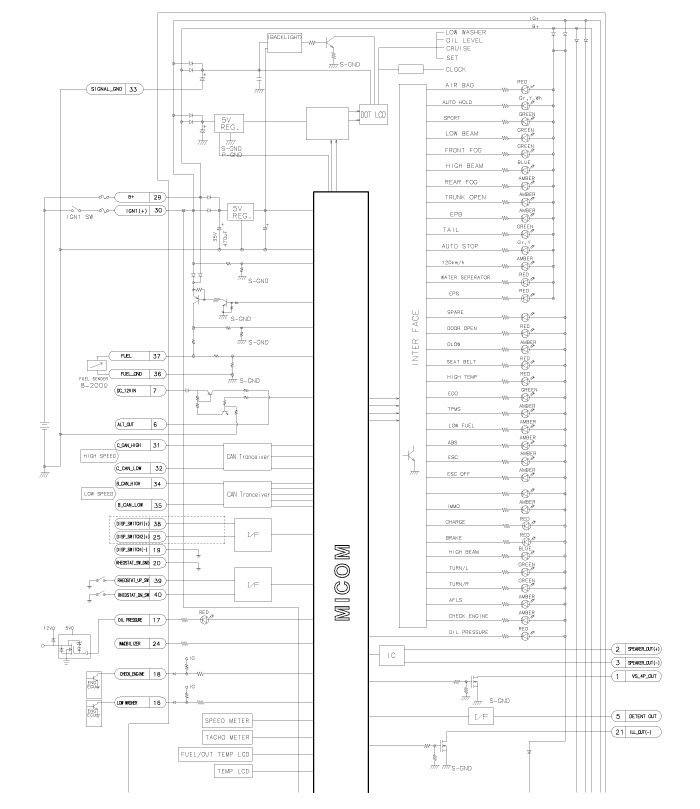

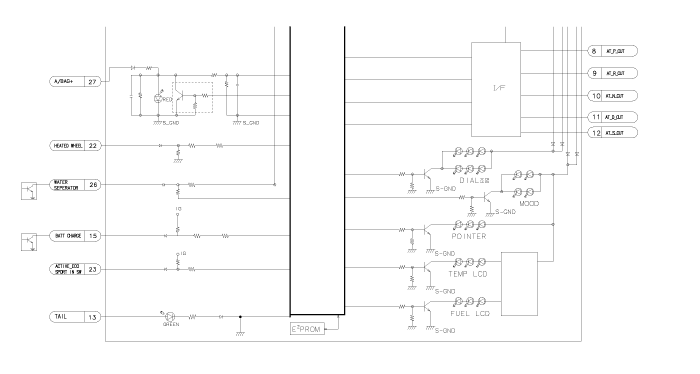

No. | Description | No. | Description |
1 | VS 4P out | 21 | Illumination out (-) |
2 | Speaker out (+) | 22 | Heated wheel |
3 | Speaker out (-) | 23 | Sport In switch |
4 | - | 24 | Immobilizer |
5 | Detent out | 25 | DISP switch (+) |
6 | ALT | 26 | Water seperator |
7 | DC 12V | 27 | Air bag (+) |
8 | AT P out | 28 | - |
9 | AT R out | 29 | Battery (+) |
10 | AT N out | 30 | IGN1 |
11 | AT D out | 31 | C CAN high |
12 | AT S out | 32 | C CAN low |
13 | Tail lamp | 33 | Signal GND |
14 | - | 34 | B CAN high |
15 | Battery charge | 35 | B CAN low |
16 | Low washer | 36 | Fuel GND |
17 | Oil pressure | 37 | Feul |
18 | Check engine | 38 | DISP switch1 (+) |
19 | DISP switch1 (-) | 39 | Rheostat up switch |
20 | Rheostat switch GND | 40 | Rheostat down switch |
