Disconnect the negative (-) battery terminal.

After loosening the mounting screws, then remove the tailgate trim (A).

(Refer to Body - "Tailgate")

Remove the tail gate latch assembly (A) after loosening the mounting bolts.

Loosen the PCU (Power Closing Unit) mounting nuts.

Disconnect the power tailgate latch connector (A) and PCU connector (B).

Remove the power tailgate latch & PCU assembly (A).

Install the power tailgate latch & PCU assembly.

Install the tailgate trim.

Connect the negative (-) battery terminal.

Check the power Tailgate module input/output value by using the GDS. If the operation of power Tailgate module is abnormal, replace power trunk drive unit.

To check the DTC of the power trunk module, select "PTM"

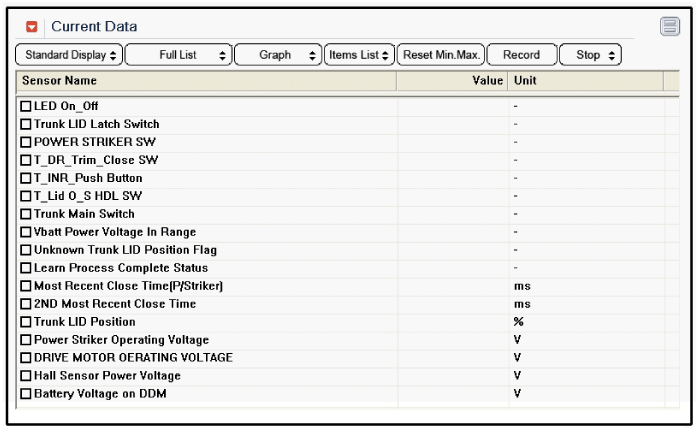

Select "Input/output monitoring".
