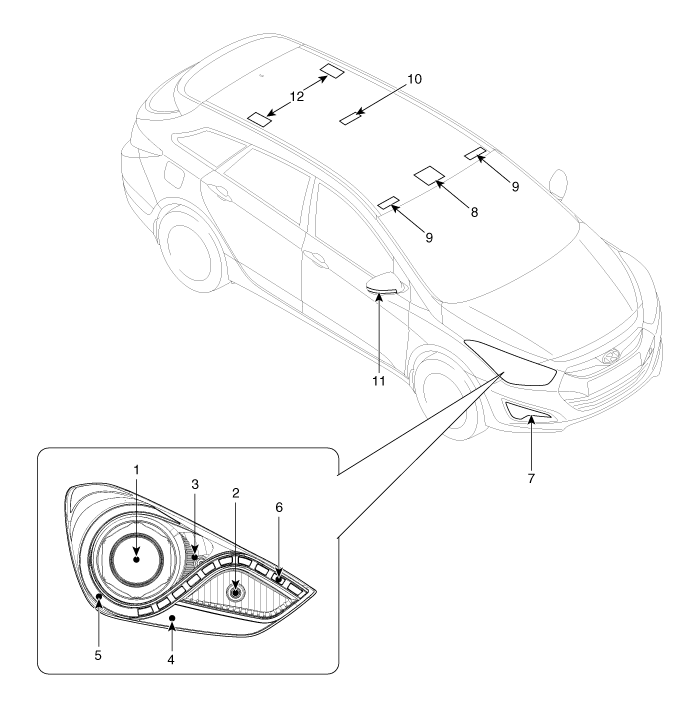

Component Location(1)

1. Head lamp (Low)

2. Head lamp (High)

3. Static bending lamp

4. Turn signal

5. Position lamp

6. DRL lamp

7. Front fog lamp

8. Overhead console lamp

9. Vanity lamp

10. Room lamp (Type A)

11. Door mirror side repeater (LED)

12. Room lamp (Type B)

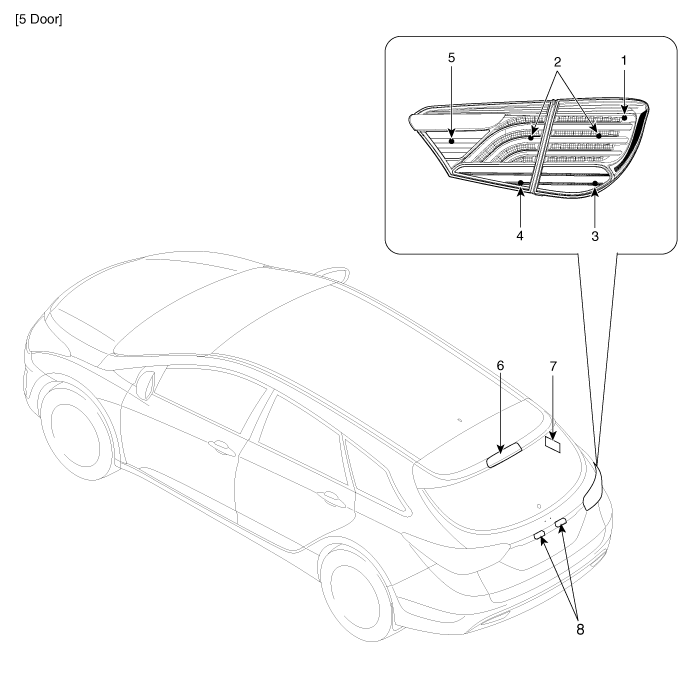

Component Location(2)

1. Stop lamp

2. Tail lamp

3. Rear turn signal lamp

4. Back up lamp

5. Rear fog lamp

6. High mounted stop lamp

7. Luggage lamp

8. License plate lamp

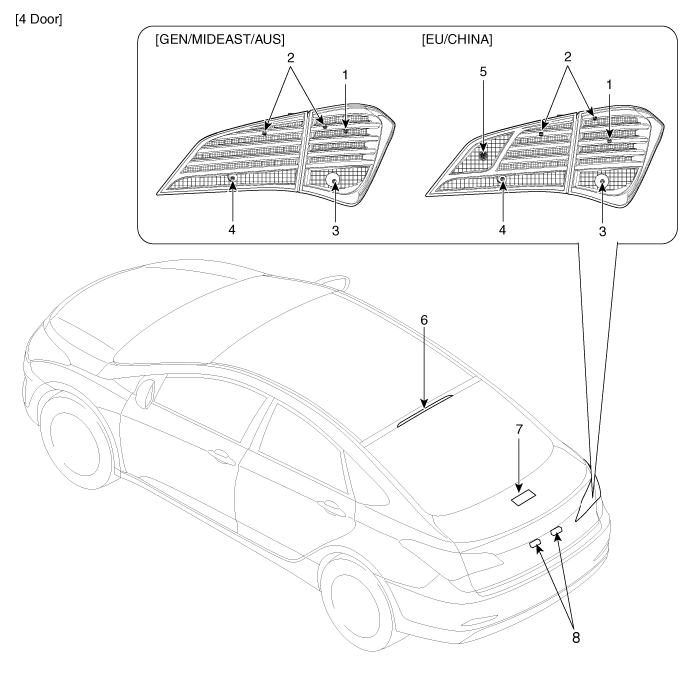

Component Location(3)

1. Stop lamp

2. Tail lamp

3. Rear turn signal lamp

4. Back up lamp

5. Rear fog lamp

6. High mounted stop lamp

7. Luggage lamp

8. License plate lamp
