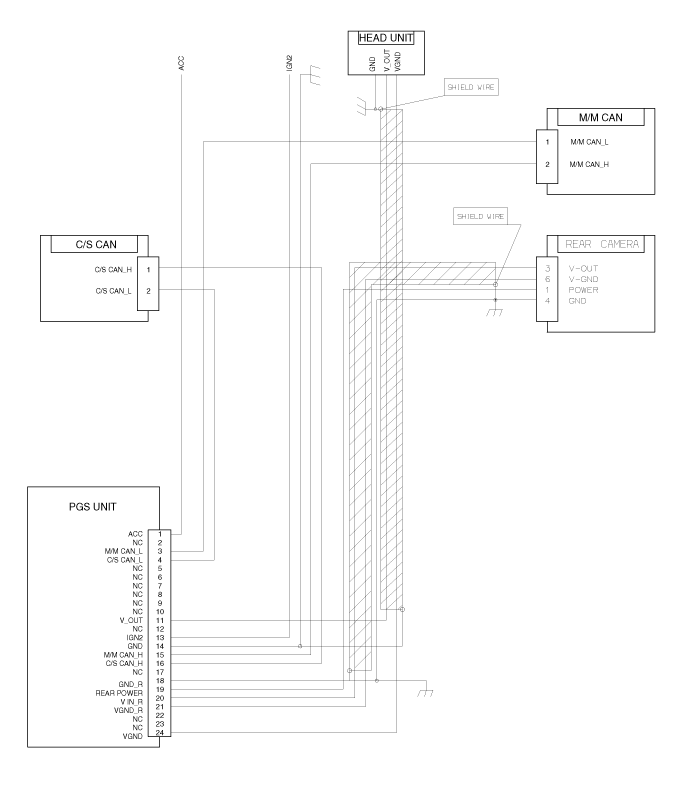

No. | Name | Description | Specified value | Active level |
1 | ACC | ACC power input | OFF(Below 1V), ON(Above 8V) |
|
2 | Power-SW | Front view camera switch ON input | Below 1V(ON, Push Return) | Active low |
3 | M/M-CAN-L | Multimedia CAN Low | - |
|
4 | C-CAN-L | Chassis CAN Low | - |
|
11 | V-OUT | Video signal output | - |
|
13 | IGN2 | IGN2 power input | Above 9V(ON), Below 1V(OFF) | Active high |
15 | M/M-CAN-H | Multimedia CAN High | - |
|
16 | C-CAN-H | Chassis CAN High | - |
|
18 | GND-R | Rear view camera ground | - |
|
19 | Rear-Power | Rear view camera power output | 6~7V(ON) / Below 1V(OFF) |
|
20 | V-IN-R | Rear view camera video signal input | - |
|
21 | VGND-R | Rear view camera video ground | - |
|
24 | VGND | Video ground | - |
|
