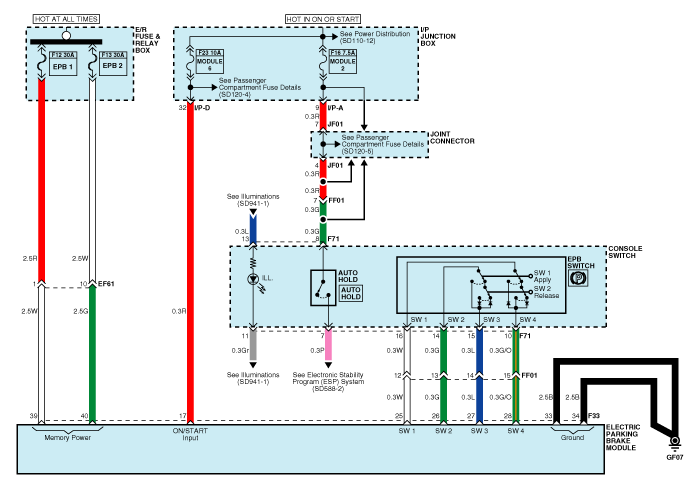

EPB Circuit Diagram (1)

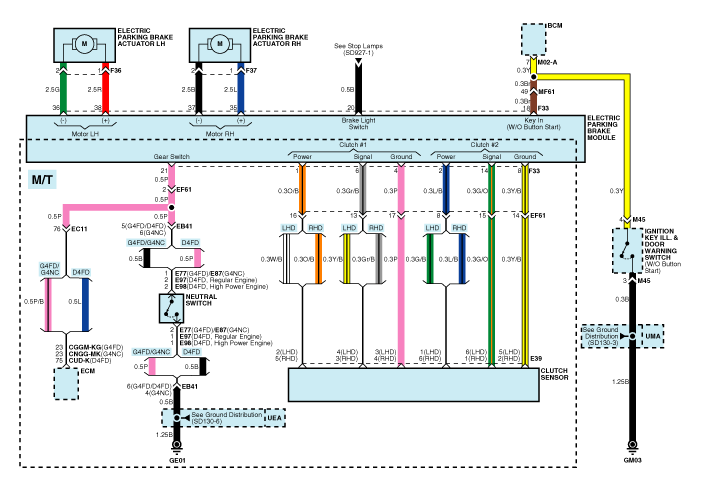

EPB Circuit Diagram (2)

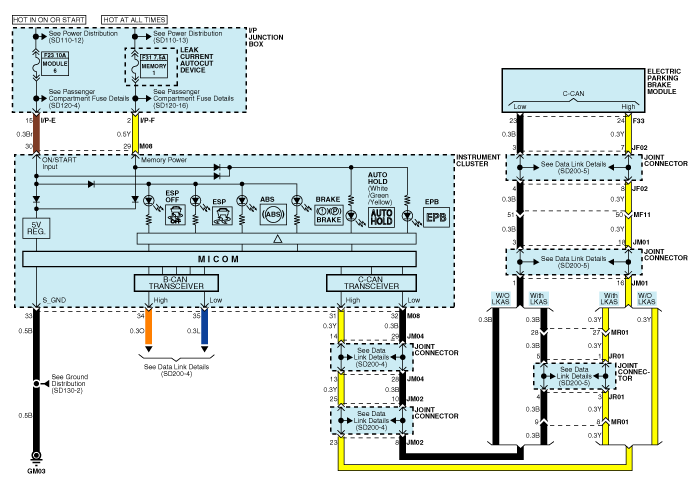

EPB Circuit Diagram (3)

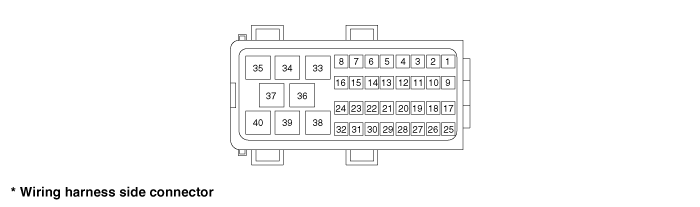

EPB connector input/output

Pin No.

Function

Pin No.

Function

1

Clutch Power 1

21

Gear switch

2

Clutch Power 2

22

-

3

-

23

CAN_Low

4

Clutch ground 1

24

CAN_High

5

-

25

EPB switch 1

6

Clutch signal 1

26

EPB switch 2

7

-

27

EPB switch 3

8

Clutch ground 2

28

EPB switch 4

9

-

29

-

10

-

30

-

11

-

31

-

12

-

32

-

13

-

33

ground

14

Clutch signal 2

34

ground

15

-

35

Rear right caliper motor +

16

-

36

Rear left caliper motor -

17

Ignition 1

37

Rear right caliper motor -

18

Key in switch

38

Rear left caliper motor +

19

-

39

Rear left motor power

20

Brake light switch]

40

Rear right motor power
