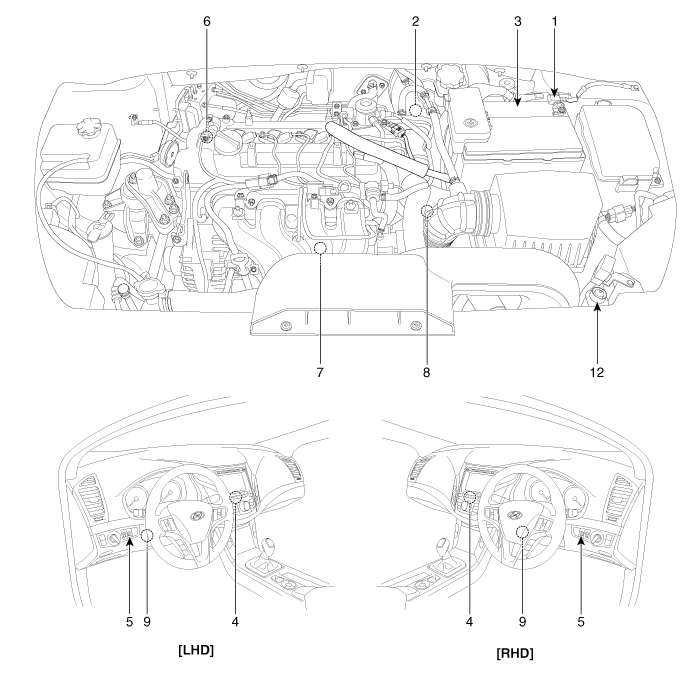

1. Battery Sensor
3. AGM Battery
2. Brake Booster Vacuum Pressure Sensor (BBVPS)
4. DC DC Converter
5. ISG OFF Switch
6. Alternator
7. Starter
8. Neutral Switch
9. Clutch Switch
10. Door Switch
11. Seat Belt Switch
12. Hood Switch
1. Battery Sensor 2. Brake Booster Vacuum Pressure Sensor (BBVPS) 3. AGM Battery 4. DC DC Converter 5. ISG OFF Switch 6. Alternator | 7. Starter 8. Neutral Switch 9. Clutch Switch 10. Door Switch 11. Seat Belt Switch 12. Hood Switch |
1. Battery Sensor 3. AGM Battery | 2. Brake Booster Vacuum Pressure Sensor (BBVPS) |
| |
4. DC DC Converter | 5. ISG OFF Switch |
| |
6. Alternator | 7. Starter |
| |
8. Neutral Switch | 9. Clutch Switch |
| |
10. Door Switch | 11. Seat Belt Switch |
| |
12. Hood Switch | |
|
