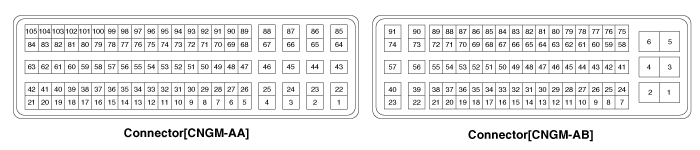

Pin | Description | Pin | Description |
1 | Ignition switch | 54 |
|
2 | Line pressure control solenoid valve | 55 |
|
3 | Torque converter control solenoid valve | 56 |
|
4 | 35R clutch control solenoid valve | 57 |
|
5 | ㅡ | 58 |
|
6 | ㅡ | 59 |
|
7 | Inhibitor switch signal "S1" | 60 |
|
8 | Inhibitor switch signal "S2" | 61 |
|
9 | Inhibitor switch signal "S3" | 62 |
|
10 | Inhibitor switch signal "S4" | 63 |
|
11 |
| 64 |
|
12 |
| 65 | ON/OFF solenoid valve B(SS-B) |
13 |
| 66 | ON/OFF solenoid valve A(SS-A) |
14 |
| 67 |
|
15 |
| 68 |
|
16 |
| 69 | Oil temperature sensor (+) |
17 |
| 70 |
|
18 |
| 71 |
|
19 |
| 72 |
|
20 |
| 73 | Output speed sensor signal |
21 |
| 74 |
|
22 |
| 75 |
|
23 | Underdrive brake control solenoid valve | 76 |
|
24 | 26 brake control solenoid valve | 77 |
|
25 | Overdrive clutch control solenoid valve | 78 |
|
26 |
| 79 |
|
27 |
| 80 |
|
28 |
| 81 |
|
29 |
| 82 |
|
30 |
| 83 |
|
31 |
| 84 |
|
32 |
| 85 |
|
33 |
| 86 | Solenoid supply power 1 |
34 |
| 87 | Solenoid supply power 2 |
35 |
| 88 |
|
36 |
| 89 |
|
37 |
| 90 | Output speed sensor power |
38 |
| 91 | Input speed sensor power |
39 |
| 92 |
|
40 |
| 93 |
|
41 |
| 94 | Input speed sensor signal |
42 |
| 95 |
|
43 |
| 96 |
|
44 |
| 97 |
|
45 |
| 98 |
|
46 |
| 99 |
|
47 |
| 100 |
|
48 | Oil temperature sensor(-) | 101 |
|
49 |
| 102 |
|
50 |
| 103 |
|
51 |
| 104 |
|
52 |
| 105 |
|
53 |
|
|
|
Pin | Description | Pin | Description |
1 | Ground (Power) | 47 |
|
2 | Ground (Power) | 48 |
|
3 | Power(VB) | 49 |
|
4 | Ground (Power) | 50 |
|
5 | Power(VB) | 51 |
|
6 | Power(VB) | 52 |
|
7 |
| 53 |
|
8 | Sport mode down switch | 54 |
|
9 | Sports mode up switch | 55 |
|
10 |
| 56 |
|
11 |
| 57 |
|
12 |
| 58 |
|
13 |
| 59 |
|
14 |
| 60 | CAN (LOW) |
15 |
| 61 |
|
16 |
| 62 |
|
17 |
| 63 |
|
18 |
| 64 |
|
19 |
| 65 |
|
20 |
| 66 |
|
21 |
| 67 |
|
22 |
| 68 |
|
23 |
| 69 |
|
24 |
| 70 |
|
25 |
| 71 |
|
26 |
| 72 |
|
27 |
| 73 |
|
28 |
| 74 |
|
29 |
| 75 |
|
30 |
| 76 |
|
31 |
| 77 | CAN (High) |
32 |
| 78 |
|
33 |
| 79 |
|
34 |
| 80 |
|
35 |
| 81 |
|
36 |
| 82 |
|
37 |
| 83 |
|
38 |
| 84 |
|
39 |
| 85 |
|
40 |
| 86 |
|
41 |
| 87 |
|
42 | Sports mode select switch | 88 |
|
43 |
| 89 |
|
44 |
| 90 |
|
45 |
| 91 |
|
46 |
|
|
|
Pin | Description | Condition | Input/output value | |
Type | Level | |||

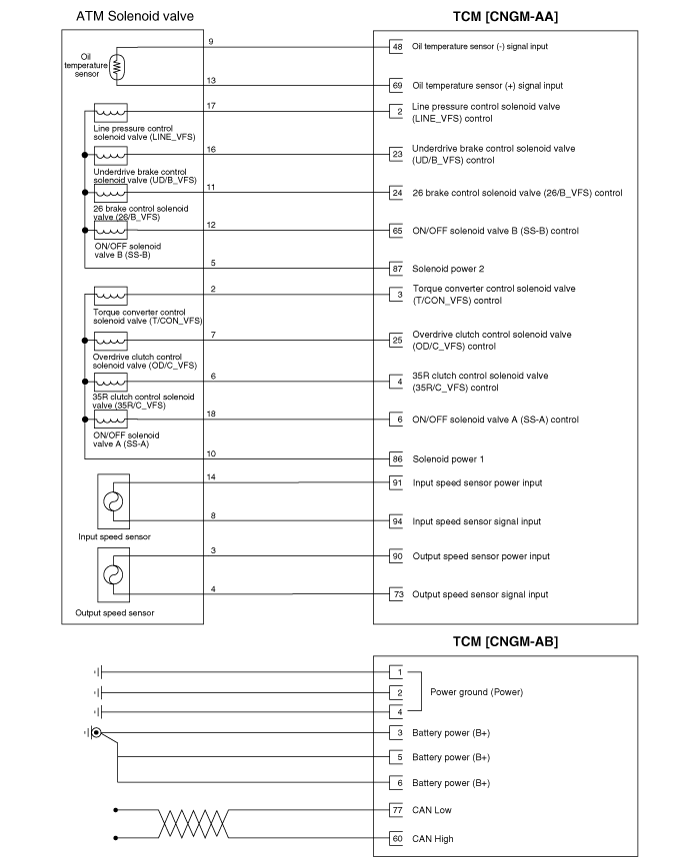

2 | Line pressure control solenoid valve (LINE_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
3 | Torque converter control solenoid valve (T/CON_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
4 | 35R clutch control solenoid valve (35R/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||

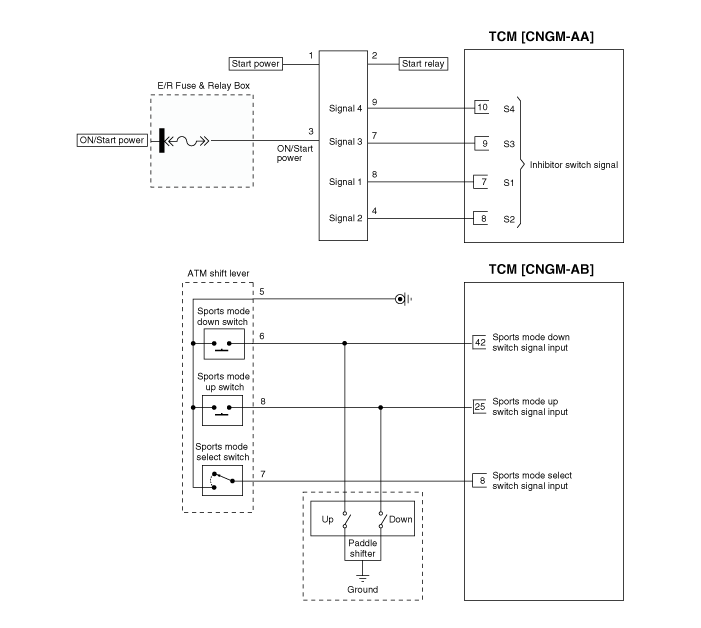

7 | Inhibitor switch signal "S1" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
8 | Inhibitor switch signal "S2" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
9 | Inhibitor switch signal "S3" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
10 | Inhibitor switch signal "S4" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
23 | Underdrive brake control solenoid valve (UD/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
24 | 26 brake control solenoid valve (26/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
25 | Overdrive clutch control solenoid valve (OD/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL1 | ||||
48 | Oil temperature sensor (-) |
| Ground | 0V |
65 | ON/OFF solenoid valve B(SS-B) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
66 | ON/OFF solenoid valve A (SS-A) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
69 | Oil temperature sensor (+) | ON | Input | 0V/3.3V |
OFF | ||||
73 | Output speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
90 | Output speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
91 | Input speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
94 | Input speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
Pin | Description | Condition | Input/output value | |
Type | Level | |||
1 | Ground (Power 1) |
| Ground | 0V |
2 | Ground (Power 2) |
| Ground | 0V |
3 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
4 | Ground (Power 2) |
| Ground | 0V |
5 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
6 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
8 | Sports mode down switch | Down ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
25 | Sports mode up switch | Up ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
42 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
