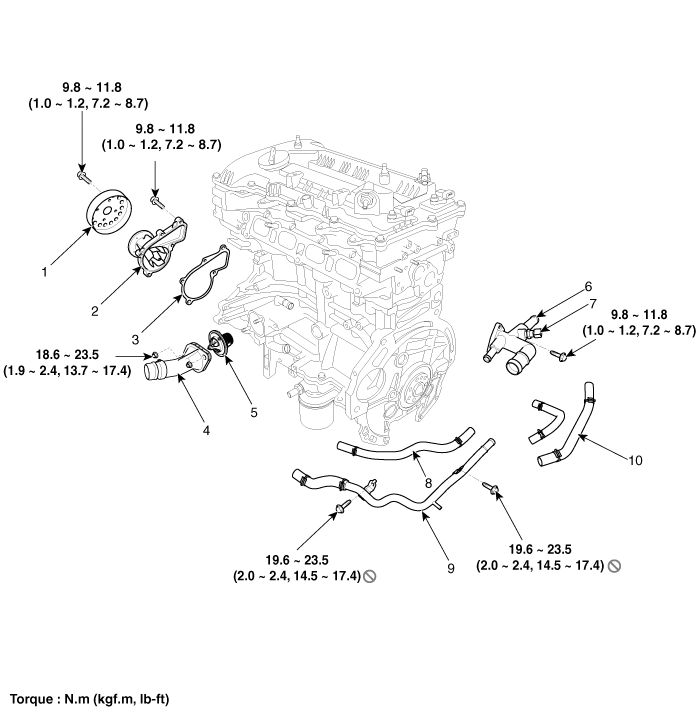

1. Water pump pulley

2. Water pump

3. Water pump gasket

4. Water inlet fitting

5. Thermostat

6. Water temperature control assembly

7. Engine coolant temperature sensor

8. Bypass hose

9. Heater pipe & hose assembly

10. Throttle body coolant hose

(if equipped)
