1.
After loosening the mounting screws, then remove the trunk inside handle (A).
When removing and installing the trunk lid, an assistant is necessary.
Wear gloves to protect hands from injury.
After loosening the mounting screws, then remove the trunk inside handle (A).
Detach the clips, then remove the trunk lid hinge cover (A).
Detach the clips, then remove the trunk lid trim (A).
Disconnect wiring (B) and connectors.
After loosening the mounting bolts, then remove the trunk lid (A).
Tightening torque :
6.9~8.8 N.m (0.7~0.9 kgf.m, 5.1~6.5 lb-ft)
Install in the reverse order of removal.
Make sure the trunk lid locks/unlocks and opens/closes properly.
Make sure connectors are connected properly and each rod is connected securely.
Replace any damaged clips.
Remove the trunk lid trim.
Disconnect the trunk lid latch connector (C).
Disconnect the cable (B), then loosen the latch assembly (A) mounting bolts and remove.
Tightening torque :
6.9~10.8 N.m (0.7~1.1 kgf.m, 5.1~8.0 lb-ft)
Install in the reverse order of removal.
Make sure the trunk lid locks/unlocks and opens/closes properly.
Make sure connectors are connected properly and each rod is connected securely.
Remove the trunk lid trim.
Disconnect the key holder cable (A), then loosen the key holder (B) mounting bolts and remove.
Install in the reverse order of removal.
Make sure the trunk lid locks/unlocks and opens/closes properly.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Remove the trunk lid trim.
After loosening the mounting nuts, then disconnect the rear combination lamp connector (A).
Remove the rear combination lamp (A).

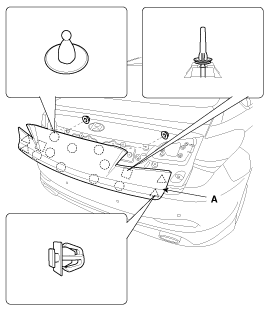

Loosen the trunk lid back panel (A) mounting nuts.
Using a screwdriver or remover, remove the trunk lid back panel (A).
Install in the reverse order of removal.
Replace any damaged clips.
Remove the trunk lid weatherstrip (A).
Do not apply sealant to the body.
Install in the reverse order of removal.
Install the weatherstrip aligned with canter line (B).

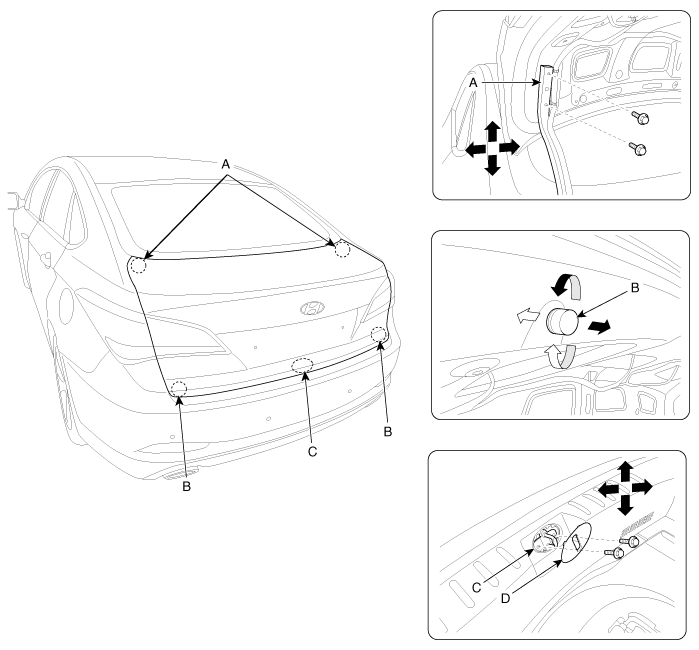

After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
Remove the trunk lid striker cover (D).
After loosening the trunk lid striker (C) mounting bolts, adjust the trunk lid striker by moving it up or down, or right or left.
