1.
Using a screwdrier or remover, remove the front door scuff trim (A).
[Front]
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
Take care not to bend or scratch the trim and panels.
Using a screwdrier or remover, remove the front door scuff trim (A).
[Front]
Remove the rear seat cushion.
(Refer to the BD group - "Rear Seat")
After loosening the mounting screw, then remove the rear door scuff trim (A).
[Rear]
Install in the reverse order of removal.
Replace any damage clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the front door scuff trim.
Remove the hood release handle.
(Refer to the BD group – “Hood”)
Detach the mounting clip, remove the cowl side trim (A).
Install in the reverse order of removal.
Replace any damage clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
Take care not to bend or scratch the trim and panels.
Using a screwdriver or remover, remove the front pillar trim (A).
Install in the reverse order of removal.
Replace any damage clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the following items.
Front door scuff trim & Rear door scuff trim
(Refer to the BD group - "Interior Trim")
Remove the seat belt lower anchor cover (B).
After loosening the mounting bolt, then remove the seat belt lower anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
Using a screwdriver or remover, remove the center pillar lower trim (A).
Using a screwdriver or remover, remove the center pillar upper trim (A).
Install in the reverse order of removal.
Replace any damaged clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the following items.
Rear seat assembly
(Refer to the BD group - "Rear Seat")
Rear seat side back assembly
(Refer to the BD group - "Rear Seat")
After loosening the mounting screw, then remove the rear door scuff trim (A).
Remove the cargo screen (A).
Push the lock button (B), remove the barrier net (A).
Detach the mounting clips, remove the rear transverse trim (A).
Disconnect the rear seat folding lever cable (A).
Using a screwdriver or remover, remove the luggage side lamp (A).
Disconnect the luggage side lamp connector (B).
Using a screwdriver or remover, remove the luggage side trim (A).
After loosening the mounting screws, then remove the rear pillar trim (A).
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the rear seat side back assembly.
(Refer to the BD group - "Rear Seat")
Using a screwdriver or remover, remove the rear pillar trim (A).
Install in the reverse order of removal.
Replace any damage clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Using a screwdriver or remover, remove the rear end trim (A).
Install in the reverse order of removal.
Replace any damage clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Push the lock button (B), remove the luggage rail bar mounting bracket assembly (A).
Push the luggage raill bar side lock (B), remove the luggage rail bar assembly (A).
Remove the luggage cover board (A).
Detach the mounting clips, remove the luggage center tray & luggage front tray (A).
After loosening the mounting bolts, then remove the luggage rail assembly (A).
Install in the reverse order of removal.
Replace any damaged clips.
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the following items.
Rear seat assembly
(Refer to the BD group - "Rear Seat")
Rear seat side back assembly
(Refer to the BD group - "Rear Seat")
Rear door scuff trim
Cargo screen
Barrier net
Rear transverse trim
Detach the mounting clip, remove the luggage side trim (A).
Install in the reverse order of removal.
Replace any damaged clips.

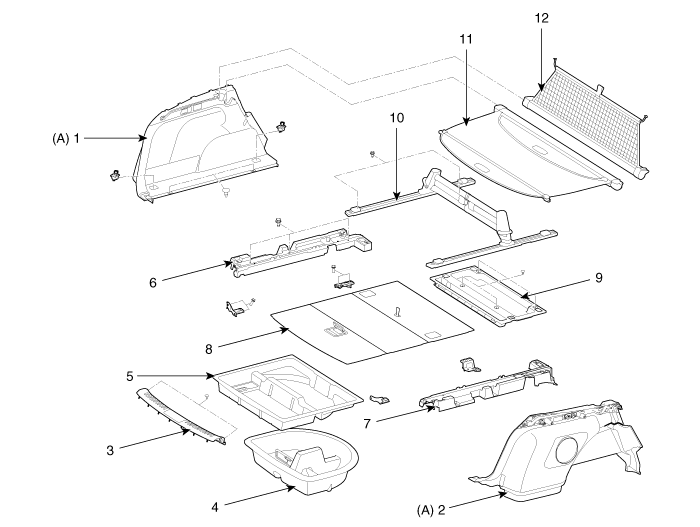

1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Rear transverse trim 4. Luggage lower tray 5. Luggage center tray 6. Luggage side lower trim [LH] | 7. Luggage side lower trim [RH] 8. Luggage cover board 9. Luggage front tray 10. Luggage rail assembly 11. Cargo screen 12. Barrier net |
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the rear seat assembly.
(Refer to the BD group – “Rear Seat”)
Remove the rear seat side back assembly.
(Refer to the BD group - "Rear Seat")
Using a screwdriver or remover, remove the rear pillar trim (A).
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
After loosening the mounting screws, then remove the partition side trim (A).
Remove the rear package tray trim (A).
Install in the reverse order of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
