2.
After loosening the mounting screw, then remove the rear door scuff trim (A).
When installing the belt, make sure not to damaged the retractor.
Remove the following items.
Rear seat
(Refer to the BD group - "Rear Seat")
Rear seat side back
(Refer to the BD group - "Rear Seat")
After loosening the mounting screw, then remove the rear door scuff trim (A).
Remove the cargo screen (A).
Push the lock button (B), remove the barrier net (A).
Detach the mounting clips, remove the rear transverse trim (A).
Disconnect the rear seat folding lever cable (A).
Using a screwdriver or remover, remove the luggage side lamp (A).
Disconnect the luggage side lamp connector (B).
Using a screwdriver or remover, remove the luggage side trim (A).

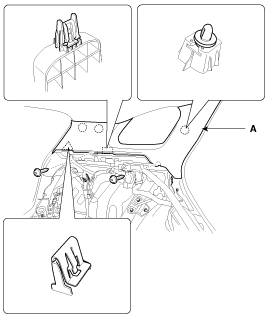

After loosening the mounting screws, then remove the rear pillar trim (A).
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)
After loosening the retractor (B) mounting bolts, then remove the rear seat belt (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
When installing the belt, make sure not to damaged the retractor.
Remove the rear seat assembly.
(Refer to the BD group – “Rear Seat”)
Remove the rear seat side back assembly.
(Refer to the BD group - "Rear Seat")
Using a screwdriver or remover, remove the rear pillar trim (A).
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
After loosening the mounting screws, then remove the partition side trim (A).
Remove the rear package tray trim (A).
After loosening the retractor (B) mounting bolt, then remove the rear seat belt (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
When installing the belt, make sure not to damaged the retractor.
Remove the following items.
Rear seat assembly [RH]
(Refer to the BD group - "Rear Seat")
Rear seat cover [RH]
(Refer to the BD group - "Rear Seat")
After loosening the retractor (B) mounting nut, then remove the rear center seat belt (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
Remove the rear seat cushion.
(Refer to the BD group - "Rear Seat")
Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)
[LH]
[RH]
Install in the reverse order of removal.
Remove the rear seat cushion.
(Refer to the BD group - "Rear Seat")
The rear center seat belt lower anchor (A) be removed after pushing the lock pin (B) as arrow direction.
Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
[LH]
[RH]
Install in the reverse order of removal.
