3.
Inspect operating status of "DBL Max Position-LH/RH" with Actuation Test.

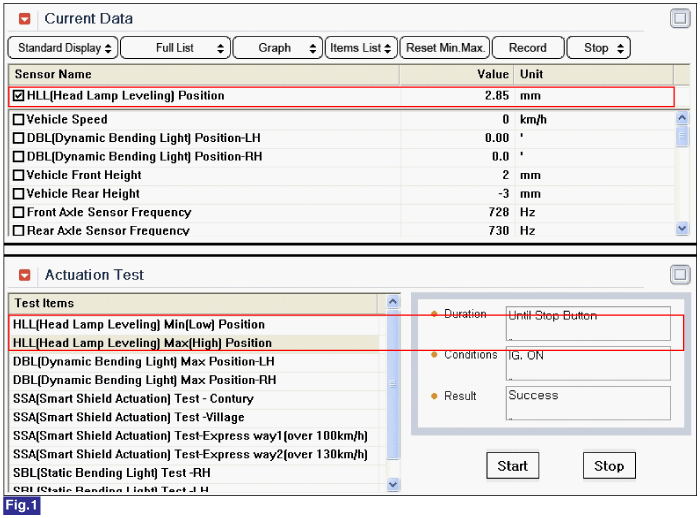

Fig.1) Actuation Test
Connect GDS to Data Link Connector(DLC)
After turning on GDS, Monitor the "HLL Position, DBL Position -LH/RH" parameters in the Current data.
Inspect operating status of "DBL Max Position-LH/RH" with Actuation Test.
Fig.1) Actuation Test
Is the head light operated properly with left and right ?
 | ▶ Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and AFLS ECU memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination or damage. |
 | ▶ Substitute with a known - good head lamp and check for proper operation. If the problem is corrected, replace head lamp and go to "Verification of Vehicle Repair" procedure. |
