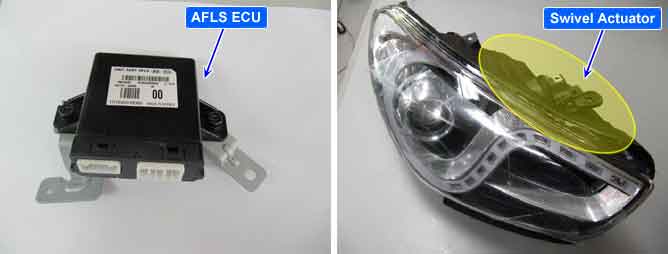

LIN (Local Interconnect Network) is direct communication system to low-cost for electric system of vehicle. AFLS ECU controls the position of headlamp by using LIN which calculates input signals of height sensor, vehicle speed and steering wheel position. Swivel Actuator controls left / right position of Headlamp, ISM(Intelligent Stepper Motor) controls up/down position of headlamp, also SSA(Smart Shield Actuator) adjusts the form for beam pattern of Headlamp.
If this LIN communication error of right Swivel Actuator occurs, this B2200 code is set. And that AFLS warning lamp is turned on in the cluster.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal monitoring | 1. LIN Communication circuit is opened/shorted 2. Right Swivel Motor connection is opened |
Enable Conditions |
•
IG ON | |
Threshold Value |
•
Swivel Actuator LIN communication error (Right) | |
Detecting time |
•
3sec | |
Check Lamp |
•
ON |

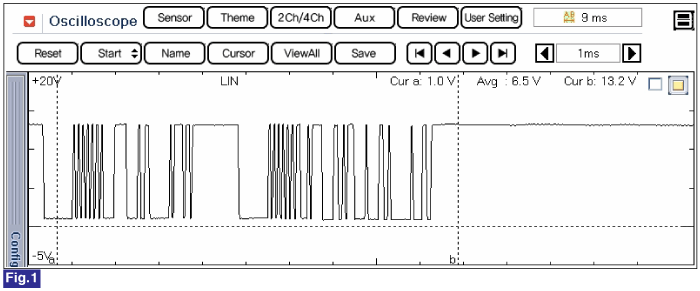

Fig.1) LIN communication Signal Waveform
