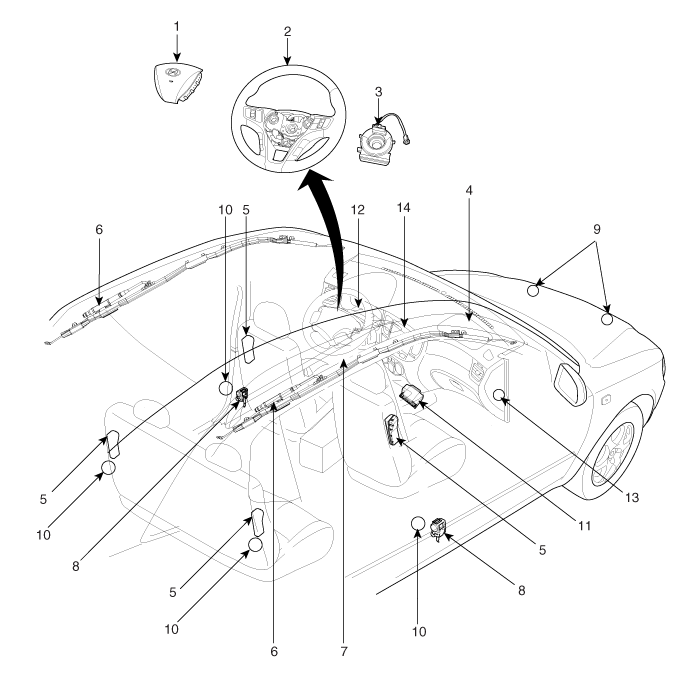

Components [LHD]

1. Driver Airbag (DAB)

2. Steering Wheel

3. Clock Spring

4. Passenger Airbag (PAB)

5. Side Airbag (SAB)

6. Curtain Airbag (CAB)

7. Knee Airbag (KAB)

8. Seat Belt Pretensioner (BPT)

9. Front Impact Sensor (FIS)

10. Side Impact Sensor (SIS)

11. Supplemental Restraint System Control Module(SRSCM)

12. Airbag Warning Lamp

13. PAB ON/OFF Switch

14. PAB ON/OFF Lamp

Components [RHD]

1. Driver Airbag (DAB)

2. Steering Wheel

3. Clock Spring

4. Passenger Airbag (PAB)

5. Side Airbag (SAB)

6. Curtain Airbag (CAB)

7. Knee Airbag (KAB)

8. Seat Belt Pretensioner (BPT)

9. Front Impact Sensor (FIS)

10. Side Impact Sensor (SIS)

11. Supplemental Restraint System Control Module(SRSCM)

12. Airbag Warning Lamp

13. PAB ON/OFF Switch

14. PAB ON/OFF Lamp

Components Location
Supplemental Restraint System Control Module (SRSCM)

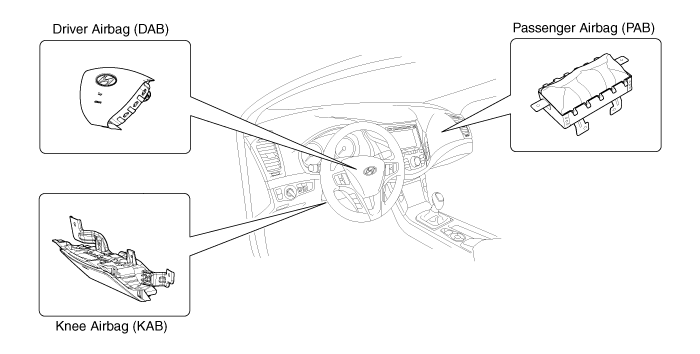

Driver Airbag (DAB) / Passenger Airbag (PAB) / Knee Airbag (KAB)
Side Airbag (SAB)
Curtain Airbag (CAB)
Front Impact Sensor (FIS)
Side Impact Sensor (SIS)
Seat Belt Pretensioner (BPT)
