1.
Monitor change of current data while idling and accelerating.
■ Reference data

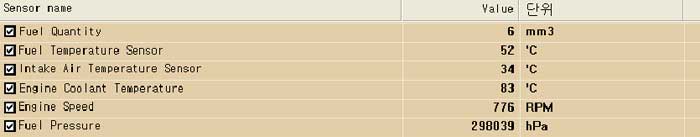

Fig.1) Normal current data at idle : Data is changed in 45℃~70℃ by the 0.8℃ after warm-up.
→ If sensor data is changed by above 2℃ rapidly, sensor performance should be inspected.
→ If data escapes from 45℃~70℃, check coolant and cooling system.
caution
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
