1.
Monitor change of current data while idling and accelerating.
■ Specification : 50~110bar
■ Reference data

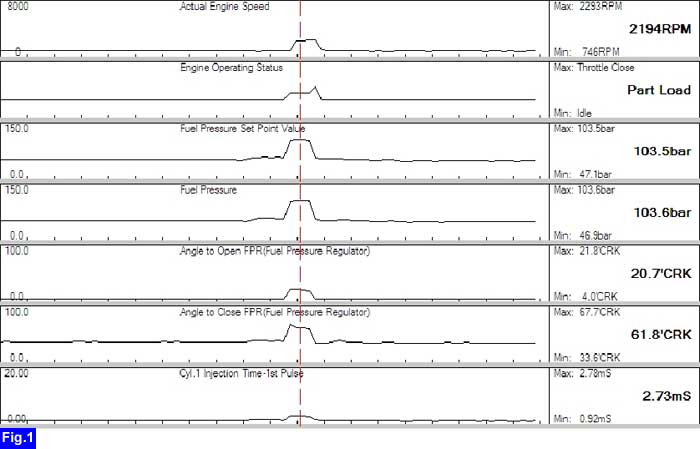

Fig.1) Normal current data while accelerating
caution
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
