SMART KEY
Current data
1.

If engine does not start with blinking immobilizer indicator lamp, monitor change of current data at IG key "OFF".

2.

Check if its signal changes from "OFF" to "ON" when SSB(Start Stop Button) is operated.

■ Reference data

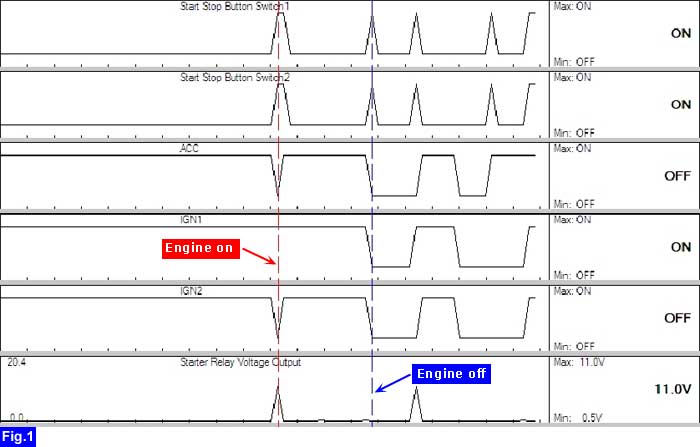

Fig.1) Normal current data while changing from engine "ON" to "OFF"

caution

This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.

3.

Is the displayed current data normal?

▶ Check the FOB key battery .

▶ Check "Start Stop Button".

▶ Check "PDM".

▶ If GDS doesn't communicate, check diagnostic communication line.
