4.
After Actuation Test, monitor diagnostic trouble code on the GDS.
Connect GDS to Data Link Connector(DLC)
IG key "ON"

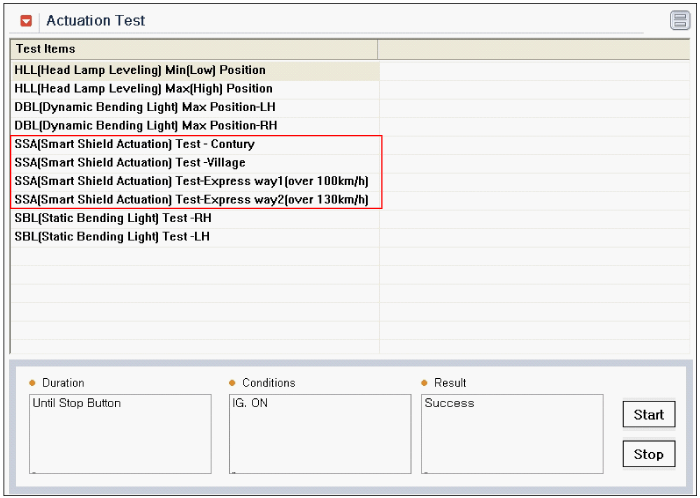

Inspect operating status of SSA[Smart Shield Actuator] with Actuation Test.
After Actuation Test, monitor diagnostic trouble code on the GDS.
Are any DTCs present ?
 | ▶ Substitute with a known-good Head lamp and check for proper operation. If problem is corrected, replace Head lamp and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Fault is intermittent caused by AFLS ECU memory was not cleared. and then go to "Verification of Vehicle Repair" procedure. |
