3.
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Connect GDS to Data Link Connector(DLC).
Ignition "ON"

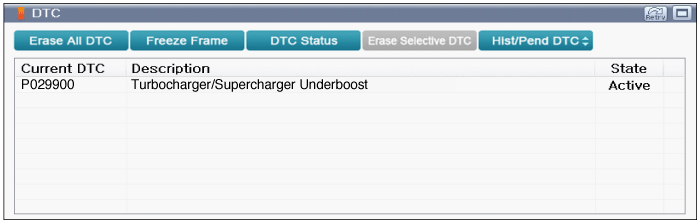

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition Switch "OFF"
Connect GDS to Data Link Connector (DLC).
lgnition switch "ON" & Engine "ON"
Monitor follow parameters in "Current Data" with GDS.
Specification :Refer to figure below
Fig. 1) Boost pressure actuator control duty current data on engine idle.
Fig. 2) Boost pressure actuator control duty current data on engine speed approx. 5000 RPM.
Is the parameter displayed within specification?
| ▶ Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure. |
| ▶ Go to "Wiring Inspection" procedure. |
