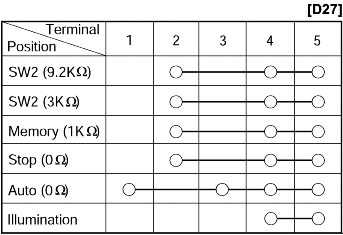

IMS CONTROL SWITCH
IMS FUNCTION
1.

Memory function

A.

Prohibition condition of memory

1.

After 5 sec when memory switch ON

2.

Seat manual switch ON

3.

Ignition switch OFF

4.

Stop switch ON

5.

Memory finished

2.

Regeneration function

A.

Prohibition condition of regeneration

1.

Ignition switch OFF

2.

Parking brake switch OFF and shift lever positioned except "P" position (A/T)

3.

Parking brake switch OFF (M/T)

4.

Vehicle speed is over 3 km/h

5.

Stop switch ON

6.

During the manual switch operation

3.

ON/OFF interlock function (Seat)

A.

Prohibition condition of interlock

1.

Auto switch OFF

2.

Parking brake is released (Switch OFF)

3.

Stop switch ON

4.

During the manual switch operation

4.

Memory or regeneration by transmitter

A.

Prohibition condition memory or regeneration by transmitter

1.

Parking brake is released (Switch OFF)

2.

During the manual switch operation

IMS POWER SEAT CONTROL

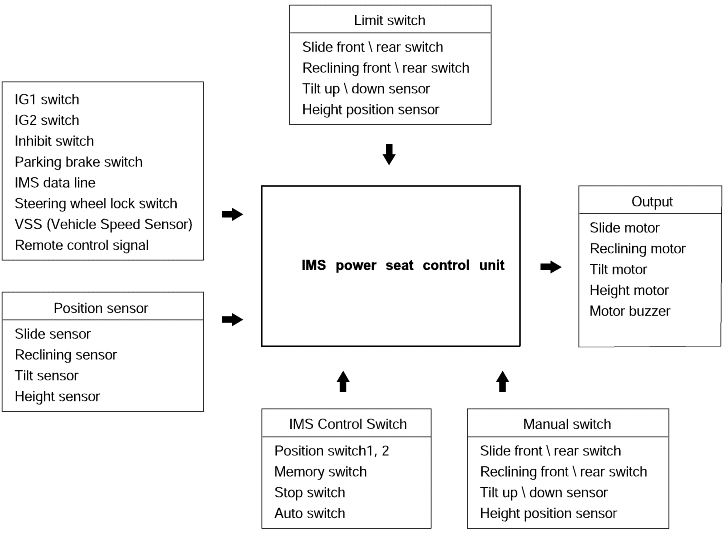

SYSTEM CONSTRUCTION
IMS POWER SEAT CONTROL OUTPUT

SLIDE > RECLINING > TILT > HEIGHT

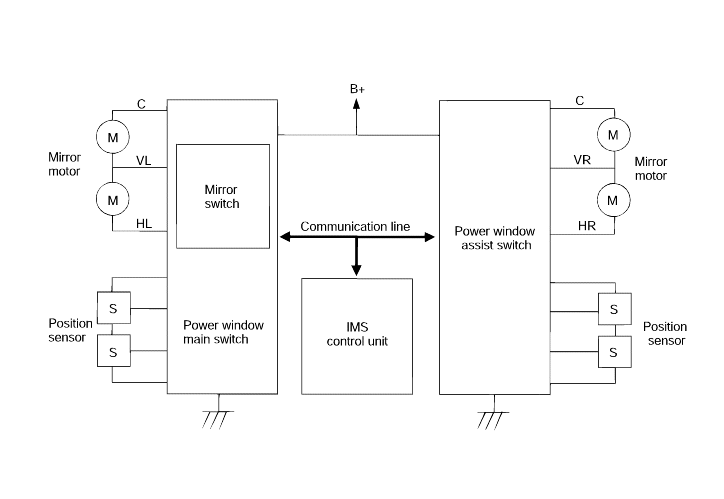

IMS MIRROR CONTROL
SYSTEM CONSTRUCTION
