6.
Remove the door glass stopper catch.
note
Does not remove the door glass stopper if you don't want to change the door glass.

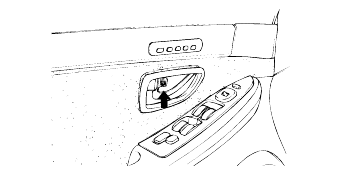

Remove the front door inside handle housing.

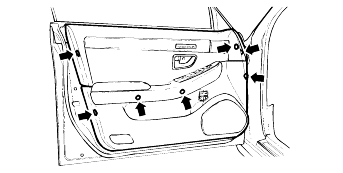

Remove the screws holding the door trim panel.

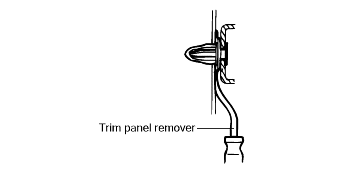

Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.
Disconnect the wire connectors from the front door.
Remove the door grip handle mounting bracket and door inside handle.
Remove the amp speaker and door trim seal.

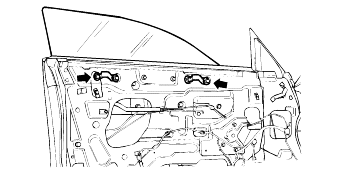

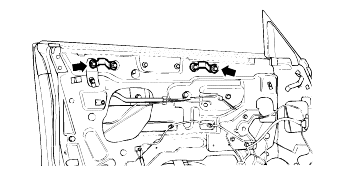

Remove the door glass stopper catch.
Does not remove the door glass stopper if you don't want to change the door glass.

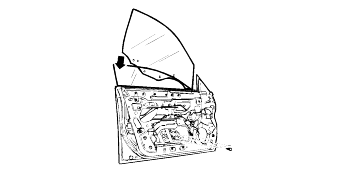

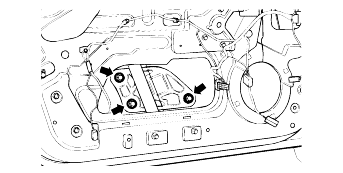

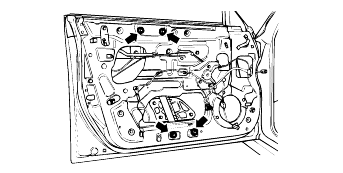

Loosen the carrier plate mounting bolts in the regulator channel and remove the door glass.

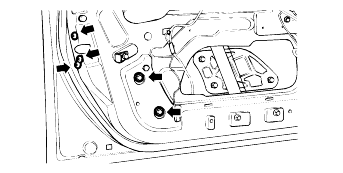

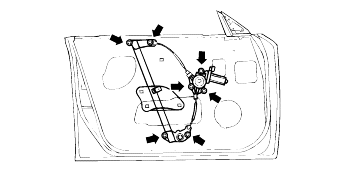

Remove the power window regulator after removing the mounting bolts.

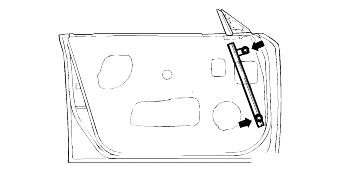

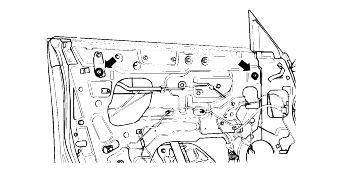

Remove the door glass channel mounting bolt and nut.

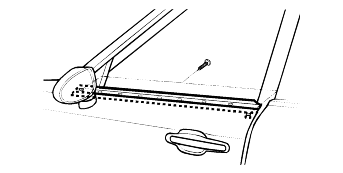

Remove the front door belt outside weatherstrip.

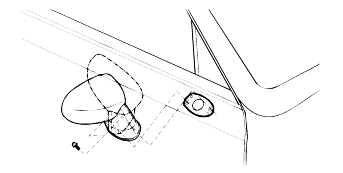

Remove the front door outside mirror.

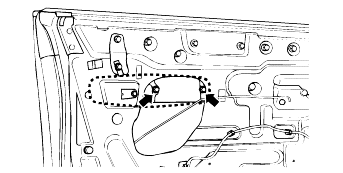

Detatch the handle rod, lock rod and then remove the door outside handle.
Remove the door latch and door lock actuator.

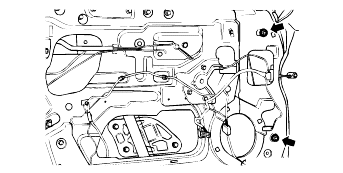

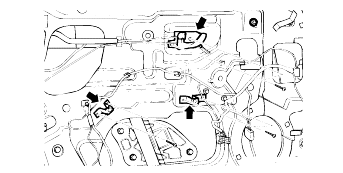

Remove the door wiring harness.

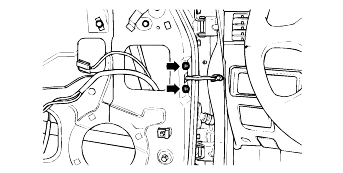

Remove the door checker and door mounting bolts and detatch the door assembly.
Installation is the reverse of removal.
When installing the door trim seal, butyl tape should not be placed over the door trim fastener mounting area.

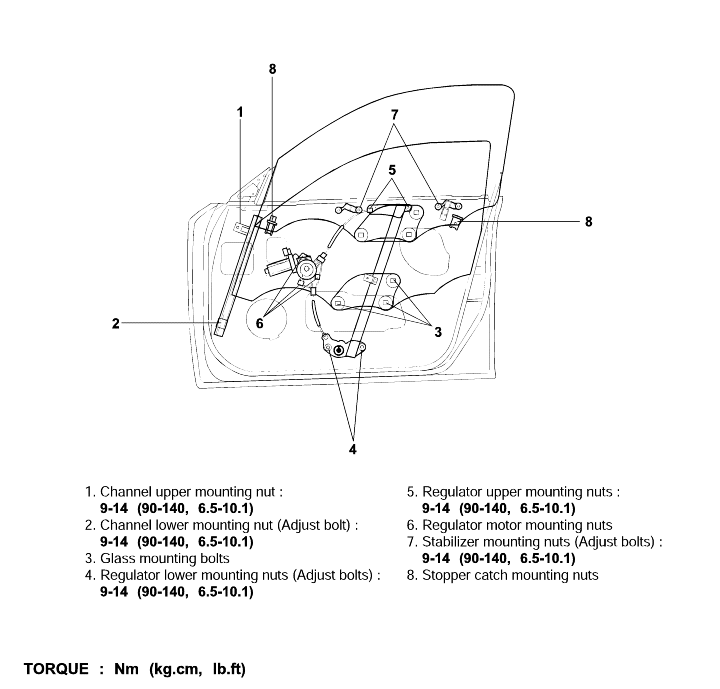

Temporarily install the front door front channel.
Temporarily install the power window regulator.
Temporarily install the door glass to the carrier plate.

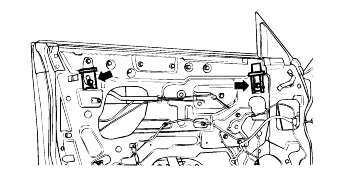

Temporarily install the stopper catch in the center of door inner panel mounting hole.
Temporarily install the stabilizer.
Tighten the stabilizer mounting nuts and push the door glass outward to the vehicle simultaneously.
Adjust the door glass and tighten the bolts and nuts. (Refer to the glass adjustment procedure)
Install the remained parts and fully close the door and glass, check for water leaks.
