2.

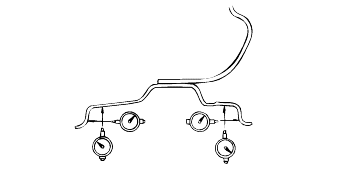

Measure wheel runout with a dial indicator as illustrated.
Jack up the vehicle and support it with jack stands.
Measure wheel runout with a dial indicator as illustrated.
Replace the wheel if the wheel runout exceeds the limit.
Aluminum type wheel Radial : 0.3 mm (0.012 in.) Axial : 0.3 mm (0.012 in.) |
Tightening torque
Specified torque 90-110 Nm (900-1100 kg·cm, 66-81 lb·ft) |
When using an impact gun, ensure to use the correct tightening torque.
Tighten all wheel nuts in the such order as shown in the illustration.
