1.

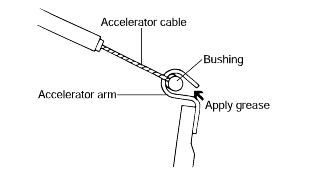

When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.
When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.

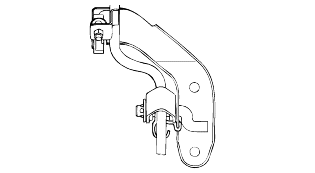

Apply sealant to the bolt mounting hole and tighten the accelerator arm bracket.
Tightening torque Accelerator arm bracket bolts : |
8~12 Nm(80~120 kg·cm, 6~7 lb·ft) |

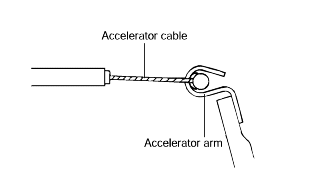

Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.
