4.

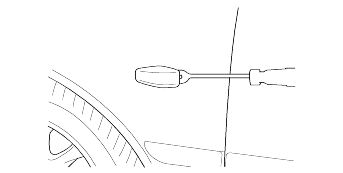

Remove the side repeater lamp using a screw driver and disconnect the connector.
caution
Wrap the screw driver with a rag to do not damage the painted surface.

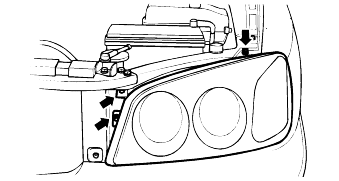

Remove the head lamp assembly.

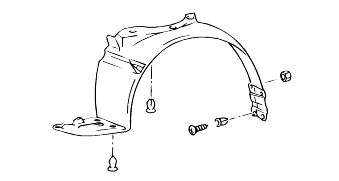

Remove the front wheel guard.

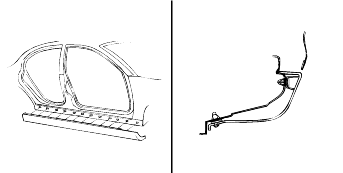

Remove the side sill molding.
Remove the side repeater lamp using a screw driver and disconnect the connector.
Wrap the screw driver with a rag to do not damage the painted surface.

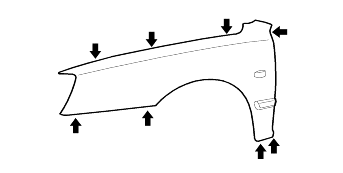

Remove the fender mounting bolts.
Use care to avoid damaging the paint.
Installation is the reverse of removal.
In order to prevent the fender mounting bolts area from forming rust, apply tape sealer between the fender and the bodypanel.
