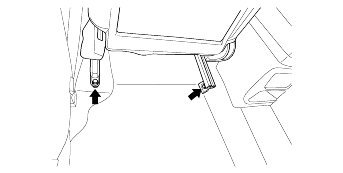

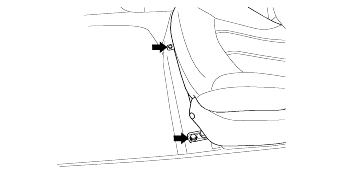

Remove the front seat mounting covers and loosen the mounting nuts and bolts.
Tightening torque |
Front seat mounting bolts : |
35-55 Nm (350-550 kg·cm, 25.4-40 lb·ft) |
Front seat mounting nuts : |
24-36 Nm (240-360 kg·cm, 17.4-26.1 lb·ft) |

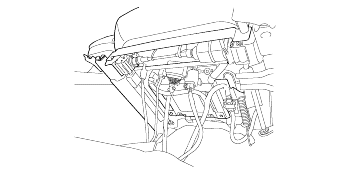

Disconnect the power seat connector or seat warning connector, seat heated connector, airbag connector.
Remove the front seat assembly.
Installation is the reverse of removal.
Connect the connectors securely.
