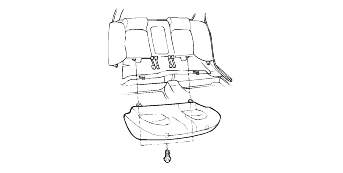

Push the rear seat mounting clip and loosen the seat cushion mounting bolts.
Tightening torque |
Seat cushion mounting bolts : |
17-26 Nm (170-260 kg·cm, 12.3-18.8 lb·ft) |

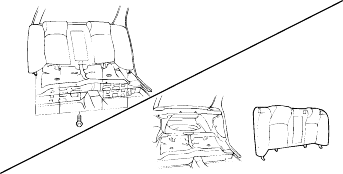

Loosen the rear seat back mounting bolts and raise the rear seat back.
Tightening torque |
Seat back mounting bolts : |
17-26 Nm (170-260 kg·cm, 12.3-18.8 lb·ft) |
Installation is the reverse of removal.
Before attaching the rear seat back and seat cushion, make sure there are no twists or kinks in the rear seat belts and center belt.
