3.

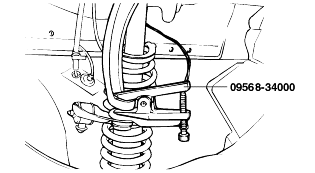

Using the special tools(09568-34000), disconnect the upper arm ball joint from the knuckle.
Remove the wheel.
Loosen the ball joint nut, but do not remove it.
Using the special tools(09568-34000), disconnect the upper arm ball joint from the knuckle.
Remove 2 nuts on the wheel house panel and remove the upper arm assembly.
Remove the upper arm shaft.
Installation is the reverse of removal.
