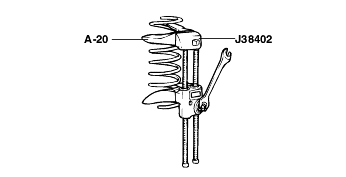

Install the special tools, (J38402, A - 20), spring compressor, on the coil spring and compress the spring. After spring is fully compressed, installit on the shock absorber.
Do not use an impact gun.

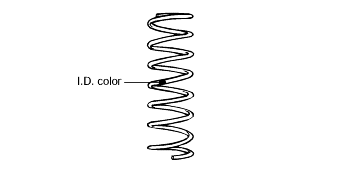

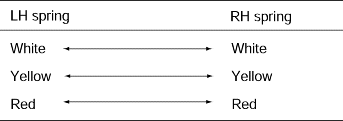

Coil spring installation chart to load classification.
Install the dust cover, upper spring pad, shock absorber mounting bracket, washer in this order and tighten the new self-locking nut temporarily.
Position the upper and lower ends of the coil spring in the upper spring pad and lower spring seat grooves correctly.
Install so that the upper spring pad is fit in the shock absorber mounting bracket correctly.
Install so that the spring urethane tube is located down.

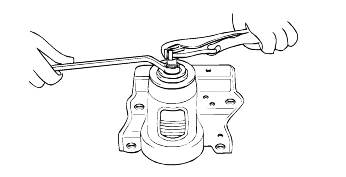

When the position of the bracket assembly is as shown in the illustration, tighten the new self-locking nut.
Remove the special tool.
Tighten the new self-locking nut to the specified torque.
Tightening torque Piston rod to bracket nut : 20-25 Nm (200-250 kg·cm, 15-18 lb·t) |
