INSPECTION
1.

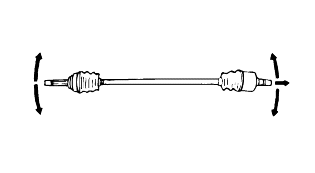

Check the driveshaft boots for damage and deterioration.

2.

Check the splines for wear and damage.

3.

Check the ball joints for wear and operating condition.

INSPECTION AFTER DISASSEMBLY
1.

Check the driveshaft spline part for wear or damage.

2.

Check for entry of water and/or foreign material into B.J.

3.

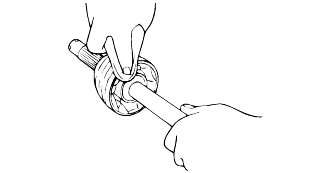

Check the spider assembly for roller rotation, wear or corrosion.

4.

Check the groove inside T.J. case for wear or corrosion.

INSPECTION AFTER DISASSEMBLY
1.

Check the drivshaft spline part for wear or damage.

2.

Check for entry of water and/or foreign material into A.C.

3.

Check the tripod assembly for roller rotation, wear or corrosion.

4.

Check the groove inside tulip for wear or corrosion.
