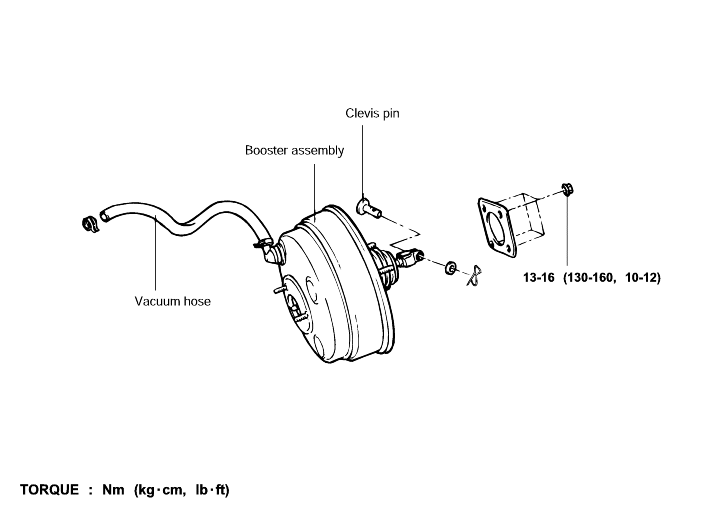

COMPONENTS
INSTALLATION
1.

Install the master cylinder.

2.

Attach the booster and master cylinder to the dash panel.

3.

Reinstall the vacuum hose securely to prevent vacuum leaks.

4.

Connect the operating rod with the brake pedal.

5.

Bleed the system.

note

Do not attempt to disassemble the brake booster.

It's not serviceable.
