1.

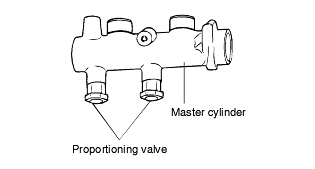

Install the master cylinder according to the illustration.
Install the master cylinder according to the illustration.
Tighten the flare nuts and bleed the system.
Tightening torque |
Brake tube flare nut : |
13-17 Nm (130-170 kgf.cm, 9-12 lb.ft) |
Proportioning valve mounting nut : |
35-55 Nm (350-550 kgf.cm, 30-40 lb.ft) |
