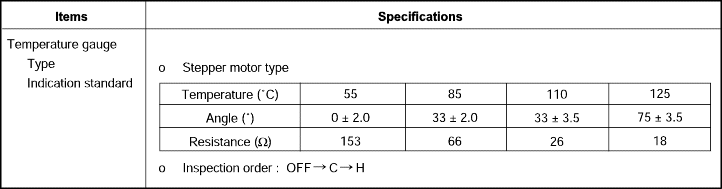

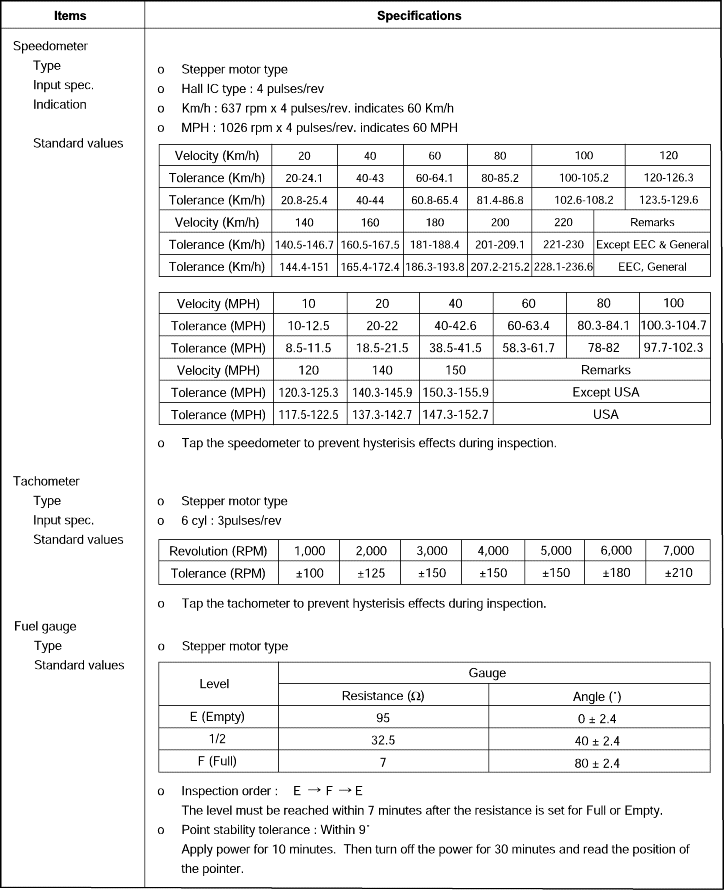

Items | Specifications |
Rated voltage | DC 12 V |
Operating temperature range | -30°C~ +80°C (-22~+176°F) |
Rated load Dimmer & passing switch Lighting switch Turn signal & lane change switch Wiper & mist switch Washer switch Variable intermittent wiper volume switch Front fog lamp switch | High : 1A (Relay load) Low : 1A (Relay load) Passing : 1A (Relay load) Lighting : 1A (Relay load) 6.6 ± 0.5A (Lamp load) Low, High : 4.5A (Motor load) Intermittent : 0.22 ± 0.05 A (Relay load) Lock : Max. 28A (Motor load) Mist : 1A (Relay load) 4A (Motor load) Max. 25 mA 1A (Relay load) |
Warning lamps | Bulb wattage (W) | Colors | |
High beam | LED | Blue | |
Low fuel | LED | Yellow | |
Turn signal (LH, RH) | LED | Green | |
Battery (charge) | LED | Red | |
Oil pressure | 1.4 (Bulb) | Red | |
Air bag | 1.4 (Bulb) | Red | |
Parking brake | LED | Red | |
Seat belt | LED | Red | |
Check engine | 1.4 (Bulb) | Yellow | |
ABS | LED | Yellow | |
Door ajar | LED | Red | |
Stop lamp failure | LED | Red | |
Cruise | LED | Green | |
Fog lamp | LED | Green | |
TCS | LED | Yellow | |
Sport | LED | Yellow | |
Trunk lid open | LED | Yellow | |
Immobilizer | LED | Yellow | |
A/T | P | LED | Green |
R | LED | Orange | |
N | LED | Green | |
D | LED | Green | |
5 | LCD | Green | |
4 | LCD | Green | |
3 | LCD | Green | |
2 | LCD | Green | |
1 | LCD | Green | |
Items | Bulb wattage(W) |
Head lamp Standard type HID type | 55W / 55W (High / Low beam) 55W / 35W (High / Low beam) |
Front turn signal lamp | 21W |
Front position lamp | 5W |
Front fog lamp | 55W |
Rear combination lamps Stop lamp Tail lamp Back up lamp Turn signal lamp Rear fog lamp | 21W 1.5W 21W 21W 6.9W |
Side repeater lamp | 5W |
Map lamp | 5W x 2EA |
Room lamp | 10W x 2EA |
Luggage & glove box lamp | 5W |
Personal lamp | 10W |
High mounted stop lamp | 3.2W |
Door courtesy lamp | 5W |
License plate lamp | 5W |
Items | H940A | H940B |
Rated output | Max. 30W x 4 | Max. 20W x 4 |
Load impedance | 2ΩX4 | 4ΩX4 |
Band | AM/FM, LW/MW/FM | AM/FM, LW/MW/FM |
Tuning type | PLL Synthesized type | PLL Synthesized type |
Dark current | Max. 2mA | Max. 2mA |
Frequency range / Channel | AM : 531 - 1602KHZ/9KHZ | AM : 531 - 1602KHZ/9KHZ |
FM : 87.5 - 108MHZ/100KHZ | FM : 87.5 - 108MHZ/100KHZ | |
LW : 153 - 279 KHZ/1KHZ | LW : 153 - 279 KHZ/1KHZ | |
MW : 531 - 1602 KHZ/9KHZ | MW : 531 - 1602 KHZ/9KHZ | |
FM : 87.5 - 108 MHZ/50KHZ | FM : 87.5 - 108 MHZ/50KHZ |
Items | Specifications |
Wiper motor Speed/current at 10kg.cm load test (1.0 Nm, 0.7 lb·ft) Speed/current at 40kg.cm load test (3.9 Nm, 2.9 lb·ft) Current when parking | Low : 44-52 rpm/3.5A or less High : 64-78 rpm/4.5A or less Low : 39-47 rpm/5.5A or less High : 56-68 rpm/7A or less Low : 24A or less High : 28A or less |
Washer motor Motor type Pump type Current Discharge pressure Flow rate Overload capacity (Continuous operation) With water Racing (Without water) | DC ferrite magnet Centrifugal 3.8A or less 1.2 kg/cm² 1,320 cc/min. or more 60 sec. or less 20 sec. or less |
Wiper arm and blade Wiping angle Blade rubber length | Driver side : 80.3° Passenger side : 92.5° Driver side : 550 mm Passenger side : 500 mm |
