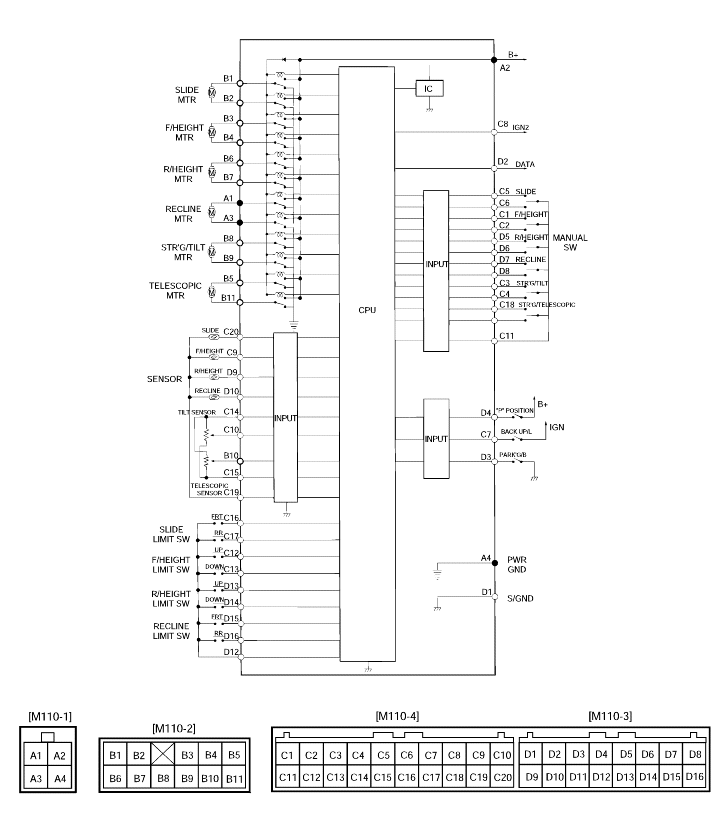

A1

Recline motor front

A2

B+

A3

Recline motor rear

A4

Power ground

B1

Slide motor front

B2

Slide motor rear

B3

Front height motor up

B4

Front height motor down

B5

-

B6

Rear height motor up

B7

Rear height motor down

B8

-

B9

-

B10

-

B11

-

C1

Manual switch (Front height up)

C2

Manual switch (Front height down)

C3

-

C4

-

C5

Manual switch (Slide front)

C6

Manual switch (Slide rear)

C7

Back up lamp

C8

IGN2

C9

Front height sensor

C10

-

C11

Manual switch common

C12

Limit switch (Front height up)

C13

Limit switch (Front height down)

C14

-

C15

-

C16

Limit switch (Slide front)

C17

Limit switch (Slide rear)

C18

-

C19

Sensor common

C20

Sensor (Slide)

D1

Signal ground

D2

Data

D3

Parking brake

D4

"P" position

D5

Manual switch (Rear height up)

D6

Manual switch (Rear height down)

D7

Manual switch (Recline front)

D8

Manual switch (Recline rear)

D9

Sensor (Rear height)

D10

Sensor (Recline)

D11

-

D12

Limit switch common

D13

Limit switch (Rear height up)

D14

Limit switch (Rear height down)

D15

Limit switch (Recline front)

D16

Limit switch (Recline rear)

A1

Recline motor front

Recline front switch ON

(Frontward)

A2

B+

Check for ENG. stop

A3

Recline motor rear

Recline front switch ON

(Rearward)

A4

Power ground

Ground lever compare to battery

B1

Slide motor (Front)

Slide front switch ON

B2

Slide motor (Rear)

Slide rear switch ON

B3

Front height motor (Up)

Front height up switch ON

B4

Front height motor (Down)

Front height down switch ON

B6

Rear height motor (Up)

Rear height up switch ON

B7

Rear height motor (Down)

Rear height down switch ON

C1

Front height manual switch

(Up)

Front height switch ON

(Upward)

C2

Front height manual switch

(Down)

Front height switch ON

(Downward)

C5

Slide manual switch (Front)

Slide switch ON (Frontward)

C6

Slide manual switch (Rear)

Slide switch ON (Rearward)

C7

Back up lamp

Shift lever "R" position

C8

IGN2 switch

IGN2 switch ON

C9

Front height position sensor

Front height operating when

IGN switch ON

C11

Manual switch common

B+

C12

Front limit switch (Up)

Front height moving to up limit

C13

Front limit switch (Down)

Front height moving to down limit

C16

Slide limit switch (Front)

Sliding to front limit

C17

Slide limit switch (Rear)

Sliding to rear limit

C19

Seat position sensor ground

IGN ON

C20

Slide position sensor

Sliding when IGN switch ON

D1

Signal ground

Ground

D2

IMS Data

Communication line

Pulse

D3

Parking brake

Parking brake switch ON

D4

"P" Position

Shift lever "P" Position

D5

Recline manual switch

(Up)

Recline switch ON

(Rear up)

D6

Recline manual switch

(Down)

Recline switch ON

(Rear down)

D7

Recline manual switch

(Front)

Recline switch ON

(Frontward)

D8

Recline manual switch

(Rear)

Recline switch ON

(Rearward)

D9

Rear height position

Rear height operating when IGN ON

D10

Recline position sensor

Reclining when IGN ON

D12

Limit switch common

B+

D13

Rear height limit switch

(Up)

Rear height to up limit

D14

Rear height limit switch

(Down)

Rear height to down limit

D15

Recline limit switch (Front)

Reclining to front limit

D16

Recline limit switch (Rear)

Reclining to rear limit
