SERVICE ADJUSTMENT PROCEDURE
CLUTCH PEDAL INSPECTION AND ADJUSTMENT
1.

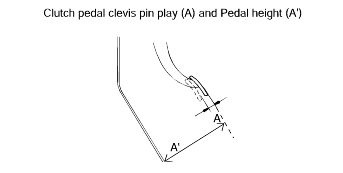

Standard value :

(A) 1-3 mm (0.04-0.11 in.)

(A') 180.5 mm (7.2 in.)

2.

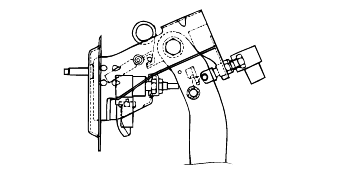

If the clutch pedal clevis pin free-play is not within the standard value range, adjust as follows :

A.

Turn and adjust the bolt, then secure by tightening the lock nut.

note

After the adjustment, tighten the bolt until it reaches the pedal stopper, and then tighten the lock nut.

B.

Turn the push rod to agree with the standard value and then secure the push rod with the lock nut.

caution

When adjusting the clutch pedal height or the clutch pedal clevis pin play, be careful not to push the push rod toward the master cylinder.

3.

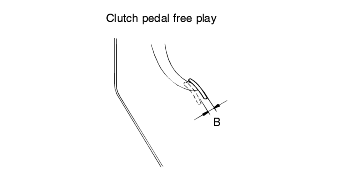

Standard value : 6-13 mm (0.2-0.5 in.)

4.

If the clutch pedal free play and the distance between the clutch pedal and the floor board when the clutch is disengaged do not meet with the standard values, it may be the result of either air in the hydraulic system or a faulty master cylinder of clutch. Bleed the air or disassemble and inspect the mastercylinder or clutch.
