Trouble symptom | Probable cause | Remedy |
Engine will not start or is hard to start (Cranks OK) | Ignition lock switch faulty | Replace ignition lock switch |
Ignition coil faulty | Inspect ignition coil | |
Power transistor faulty | Inspect power transistor | |
Spark plugs faulty | Replace plugs | |
Ignition wiring disconnected or broken | Inspect wiring | |
Spark plugs faulty | Replace plugs | |
Rough idle or stalls | Ignition wiring faulty | Inspect wiring |
Ignition coil faulty | Inspect ignition coil | |
Spark plug cable faulty | Inspect spark plug cable | |
Engine hesitates/poor acceleration | Spark plugs faulty | Replace plugs |
Ignition wiring faulty | Inspect ignition coil | |
Poor mileage | Spark plugs faulty | Replace plugs |
Trouble symptom | Probable cause | Remedy |
Charging warning indicator does not light with ignition switch "ON" and engine off | Fuse blown | Check fuses |
Light burned out | Replace light | |
Wiring connection loose | Tighten loose connections | |
Electronic voltage regulator faulty | Replace voltage regulator | |
Charging warning indicator does not go out with engine running (Battery requires frequent recharging) | Drive belt loose or worn | Adjust tension or replace drive belt |
Battery cables loose, corroded or worn | Repair or replace cables | |
Fuse blown | Check fuses | |
Fusible link blown | Replace fusible link | |
Electronic voltage regulator or generator faulty | Test generator | |
Wiring faulty | Repair wiring | |
Engine hesitates/poor acceleration Overcharge | Drive belt loose or worn | Adjust tension or replace drive belt |
Wiring connection loose or open circuit | Tighten loose connection or repair wiring | |
Fusible link blown | Replace fusible link | |
Poor grounding | Repair | |
Electronic voltage regulator or generator faulty | Test generator, if faulty, repair or replace. | |
Worn battery | Replace battery | |
Electronic voltage regulator faulty | Replace voltage regulator | |
Voltage sensing wire faulty | Repair wire |
Trouble symptom | Probable cause | Remedy |
Engine will not crank | Battery charge low | Charge or replace battery |
Battery cables loose, corroded or worn out | Repair or replace cables | |
Transaxle range switch faulty (Vehicle with automatic transaxle only) | Adjust or replace switch | |
Fusible link blown | Replace fusible link | |
Starter motor faulty | Repair starter motor | |
Ignition switch faulty | Replace ignition switch | |
Ignition lock switch faulty | Replace ignition lock switch | |
Engine cranks slowly | Battery charge low | Charge or replace battery |
Battery cables loose, corroded or worn out | Repair or replace cables | |
Starter motor faulty | Repair starter motor | |
Starter keeps running | Starter motor faulty | Repair starter motor |
Ignition switch faulty | Replace ignition switch | |
Starter spins but engine will not crank | Short in wiring | Repair wiring |
Pinion gear teeth broken or starter motor faulty | Repair starter motor | |
Ring gear teeth broken | Replace flywheel ring gear or torque converter |
Check that the actuator and pulley assembly are all normal.
Check if the pulley assembly and the movement of cables are working smoothly.
Check if there is no excessive play or tension in each cable.
Make the following preliminary inspections.
Check that the installation of the actuator, accelerator cable are correct, and that the cables and links are securely connected.
Check that the accelerator pedal moves smoothly.
Adjust the cable so there is not excessive tension or excessive play on the accelerator cable.
Check that the actuator and unit assembly, cruise main, control switch and the connector of each cancel switch are connected securely.
Check in the sequence indicated in the "TROUBLE SYMPTOM CHARTS".
If a normal condition is indicated, replace the cruise control module.
Trouble symptom | Probable cause | Remedy |
The set vehicle speed varies greatly upward or downward | Malfunction of the vehicle speed sensor circuit | Repair the vehicle speed sensor system, or replace the part |
"Surging" (repeated alternating acceleration and deceleration) occurs after setting | Malfunction of the speedometer cable or speedometer drive gear | |
Malfunction of the acutator and unit | Replace the actuator and unit |
Trouble symptom | Probable cause | Remedy |
The CC system is not canceled when the brake pedal is depressed | Damaged or disconnected wiring of the stop lamp switch | Repair the harness or replace the stop lamp switch |
Malfunction of the actuator and unit | Replace the actuator and unit |
Trouble symptom | Probable cause | Remedy |
The CC system is not canceled when the shift lever is moved to the "N" position (It is canceled, however,when the brake pedal is depressed | Damaged or disconnected wiring of inhibitor switch input circuit | Repair the harness or repair or replace the inhibitor switch |
Improper adjustment of inhibitor switch | ||
Malfunction of the actuator and unit | Replace the actuator and unit |
Trouble symptom | Probable cause | Remedy |
Cannot decelerate (coast) by using the SET switch | Temporary damaged or disconnected wiring of SET switch input circuit | Repair the harness or replace the SET switch |
Actuator circuit poor contact | Repair the harness or replace the actuator | |
Malfunction of the actuator | ||
Malfunction of the actuator and unit | Replace the actuator and unit |
Trouble symptom | Probable cause | Remedy |
Cannot accelerate or resume speed by using the RESUME switch | Damaged or disconnected wiring, or short circuit, or RESUME switch input circuit | Repair the harness or replace the RESUME switch |
Actuator circuit poor contact | Repair the harness or replace the actuator | |
Malfunction of the actuator | ||
Malfunction of the actuator and unit | Replace the actuator and unit |
Trouble symptom | Probable cause | Remedy |
CC system can be set while driving at a vehicle speed of less than 40km/h (25mph), or there is no automaticcancellation at that speed | Malfunction of the vehicle-speed sensor circuit | Repair the vehicle speed sensor system, or replace the part |
Malfunction of the speedometer cable or the speedometer drive gear | ||
Malfunction of the actuator and unit | Replace the actuator and unit |

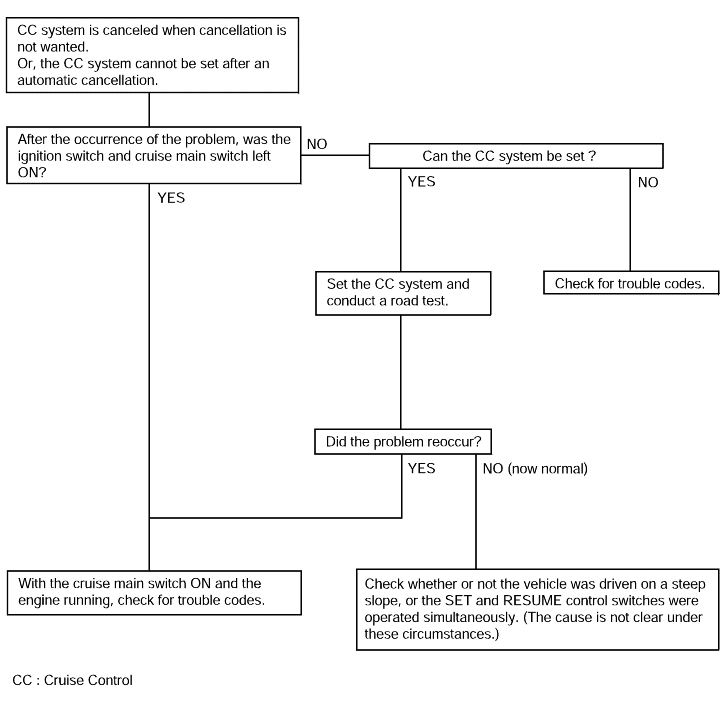

Trouble symptom | Probable cause | Remedy |
Trouble symptom | Probable cause | Remedy |
The cruise main switch indicator lamp does not illuminate (But CC system is normal) | Damaged or disconnected bulb of cruise main switch indicator lamp | Repair the harness or replace the part. |
Harness damaged or disconnected |
Trouble symptom | Probable cause | Remedy |
Malfunction of control function by ON/OFF switching of idle switch | Malfunction of circuit related to idle switch function | Repair the harness or replace the part |
Malfunction of the actuator and unit |
Trouble symptom | Probable cause | Remedy |
Overdrive is not canceled during fixed speed driving | Malfunction of circuit related to overdrive cancelation, or malfunction of actuator and unit | Repair the harness or replace the part |
No shift to overdrive during manual driving |
