CAMSHAFT POSITION SENSOR

The CMP sensor senses the camshaft position on compression stroke of the No.1 cylinder, converts it into a pulse signal, and inputs it to the ECM. The ECM then computes the fuel injection sequence, etc. based on the inputsignal.

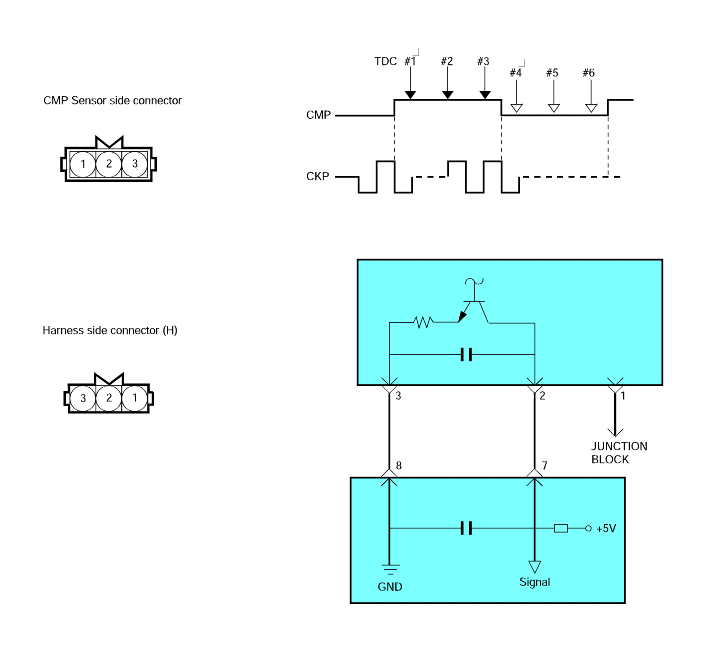

CIRCUIT DIAGRAM

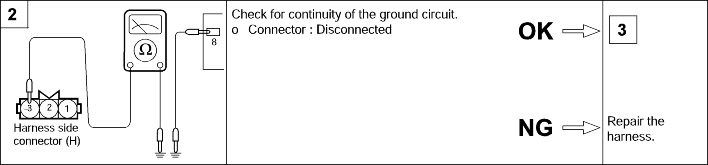

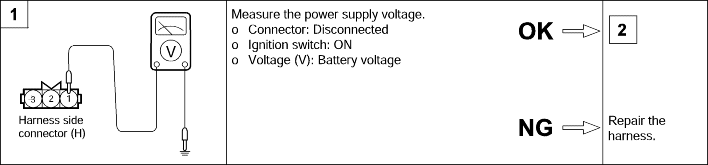

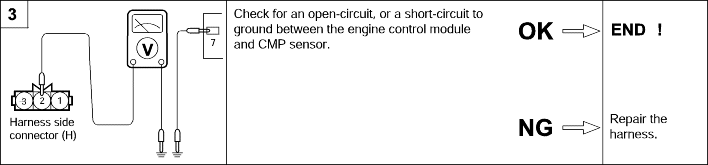

HARNESS INSPECTION PROCEDURE
TROUBLESHOOTING HINTS
